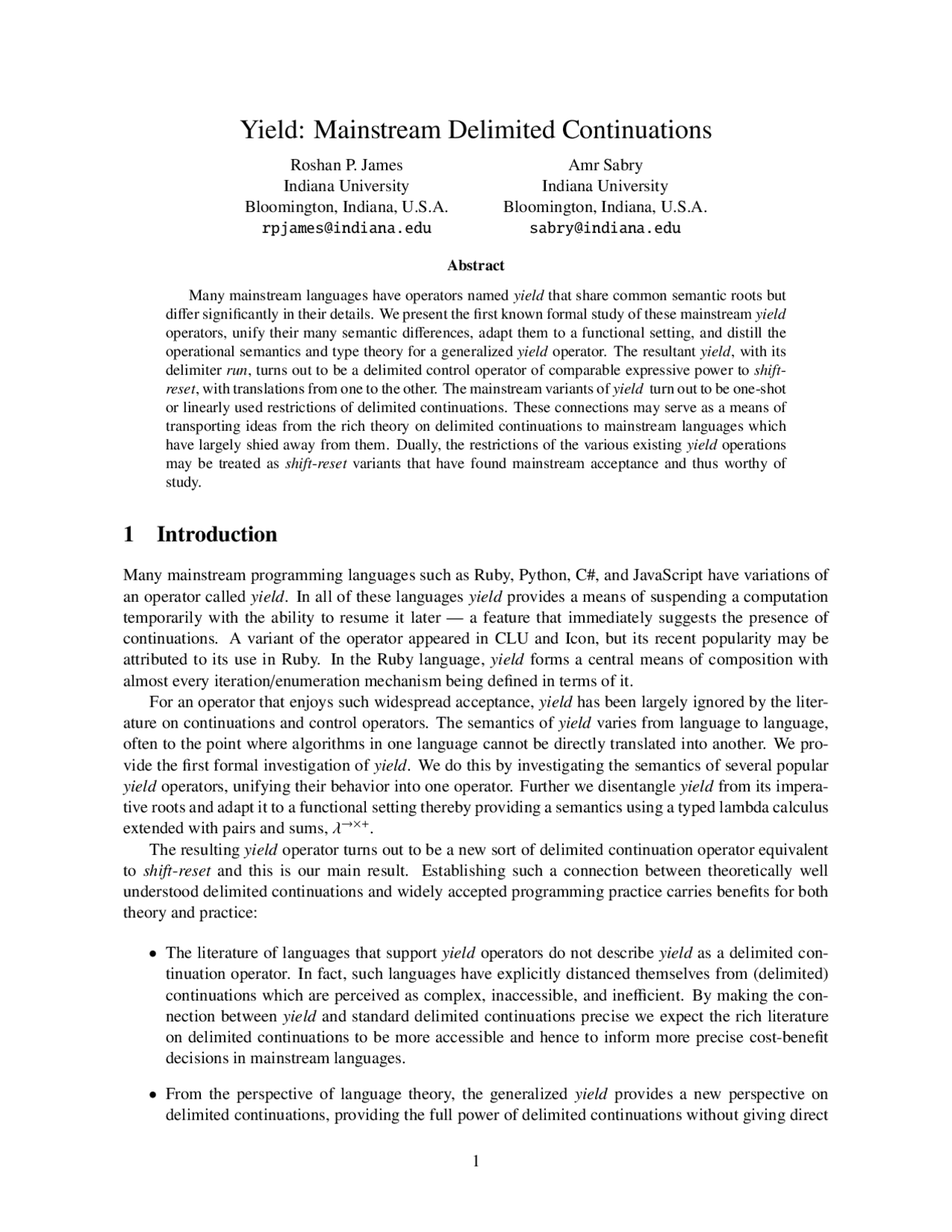

Yield: Mainstream Delimited Continuations
Roshan P. James Indiana University Bloomington, Indiana, U.S.A. [email protected]
Amr Sabry Indiana University Bloomington, Indiana, U.S.A. [email protected]
Abstract Many mainstream languages have operators named yield that share common semantic roots but differ significantly in their details. We present the first known formal study of these mainstream yield operators, unify their many semantic differences, adapt them to a functional setting, and distill the operational semantics and type theory for a generalized yield operator. The resultant yield, with its delimiter run, turns out to be a delimited control operator of comparable expressive power to shift- reset, with translations from one to the other. The mainstream variants of yield turn out to be one-shot or linearly used restrictions of delimited continuations. These connections may serve as a means of transporting ideas from the rich theory on delimited continuations to mainstream languages which have largely shied away from them. Dually, the restrictions of the various existing yield operations may be treated as shift-reset variants that have found mainstream acceptance and thus worthy of study.
1 Introduction
Many mainstream programming languages such as Ruby, Python, C#, and JavaScript have variations of an operator called yield. In all of these languages yield provides a means of suspending a computation temporarily with the ability to resume it later — a feature that immediately suggests the presence of continuations. A variant of the operator appeared in CLU and Icon, but its recent popularity may be attributed to its use in Ruby. In the Ruby language, yield forms a central means of composition with almost every iteration/enumeration mechanism being defined in terms of it. For an operator that enjoys such widespread acceptance, yield has been largely ignored by the liter- ature on continuations and control operators. The semantics of yield varies from language to language, often to the point where algorithms in one language cannot be directly translated into another. We pro- vide the first formal investigation of yield. We do this by investigating the semantics of several popular yield operators, unifying their behavior into one operator. Further we disentangle yield from its impera- tive roots and adapt it to a functional setting thereby providing a semantics using a typed lambda calculus extended with pairs and sums, λ→×+. The resulting yield operator turns out to be a new sort of delimited continuation operator equivalent to shift-reset and this is our main result. Establishing such a connection between theoretically well understood delimited continuations and widely accepted programming practice carries benefits for both theory and practice:
- The literature of languages that support yield operators do not describe yield as a delimited con- tinuation operator. In fact, such languages have explicitly distanced themselves from (delimited) continuations which are perceived as complex, inaccessible, and inefficient. By making the con- nection between yield and standard delimited continuations precise we expect the rich literature on delimited continuations to be more accessible and hence to inform more precise cost-benefit decisions in mainstream languages.
- From the perspective of language theory, the generalized yield provides a new perspective on delimited continuations, providing the full power of delimited continuations without giving direct
access to the continuation. Moreover the variants of yield from mainstream languages provide several new operators that encapsulate stylized uses of such delimited continuations. Stylized uses of continuations have been proposed early on [FH85] and studied extensively as a linear discipline on continuation use [BORT02]. In the case of yield, stylized uses of continuations can be defined by simple syntactic restrictions, suggesting that yield provides a superior interface for delimited continuations.
2 A Survey of yield operators
Languages such as C#, Ruby, Python, Cω, JavaScript, Sather, F#, and CLU all support yield operators. Describing the full syntactic and library-level support provided by these languages is beyond the scope of this paper and hence we look at only a few of these languages in detail, describing the relevant properties of yield at each step. Unfortunately, many languages only give informal descriptions of their yield variants with just a few examples, and hence our presentation informally proceeds from the informal to the formal. This section helps develop an insight into yield’s semantics and establishes relevant terminology. Since the terminology of each language is different, as we explore the design space of yield operators we establish our own common vocabulary for concepts common to different languages. Ultimately, we use this section to provide an informal derivation of our generalized yield. We rec- oncile existing semantic differences by merging functionality whenever possible, often biasing design choices in favor of a functional programming style.
2.1 yield return in C#
C# 2.0 [ECM06] introduced a yield operator with the addition of the keyword yield return. The func- tion fibonacci below uses the yield operator to generate the infinite Fibonacci series. Its return type, IEnumerable, indicates that it yields a (potentially infinite) sequence of int values.
IEnumerable fibonacci ( ) { int a = 0 , b = 1 ; while ( true ) { yield return a ; b = a + b ; a = b − a ; } }
void useFibonacci ( ) { foreach ( int n in fibonacci ( ) ) { if ( n > 100) break ; Console. WriteLine ( n ) ; } }
We use the term iterator to refer to computations that yield values. The argument to the yield operator becomes an output of the iterator. We refer to these outputs as yielded values. The usage of the word output here needs some clarification: yielding values is not an output operation in the conventional sense of a process interacting with the operating system. Rather the yielded values are “interactive” outputs from the iterator to its calling context. In this sense it is handy to think of yield as a delimited IO operator. The caller, useFibonacci, invokes the iterator using a foreach loop. The loop body executes each time a value is output from the iterator. Variable n is bound to the yielded value at each loop iteration. Each time fibonacci yields, its execution is suspended. When the loop body finishes, execution of the iterator resumes from the point of suspension. The state of the iterator is preserved across a yield suspension. Thus yield lets us model streams and lazy lists in a natural way. When an iterator yields, it need not be resumed by its caller even though it may have pending computations to perform. For instance, useFibonacci breaks out of the loop eventually leaving fibonacci
iterator is always implicit. To use more than one iterator at a time, we have to make this suspension an explicit object. Let us look at a JavaScript example that decouples the iterator usage from the loop construct, thereby enabling us to interleave interaction with multiple iterators. These iterators are first class values — a usage that is referred to as external iterators:
function fibonacci ( ) { val a = 0 , b = 1 while ( true ) { yield a b = b + a a = b − a } } function each ( array ) { for ( val i = 0 ; i < array. length ( ) ; i++) { yield array [ i ] } }
function compare ( array ) { try { iter1 = fibonacci ( ) iter2 = each ( array ) while ( true ) { if ( iter1. next ( ) == iter2. next ( ) ) return true } } catch ( err instanceOf StopIteration ) { } return false }
In the example above, compare invokes two iterators, executing them in lock step. Each Fibonacci number is computed only when required until either a match is found or the array is exhausted. In JavaScript, when an iterator terminates its. next () method invocation raises a StopIteration exception. Since one cannot enumerate all the ways in which someone might want to interleave iterators, having external iterators is more expressive than having only internal iterators. We quote the classical Design Patterns book [GHJV95]:
External iterators are more flexible than internal iterators. It’s easy to compare two collec- tions for equality with an external iterator, for example, but it’s practically impossible with internal iterators [... ] But on the other hand internal iterators are easier to use because they define the iteration logic for you.
C#, F# and Python also have the ability to treat iterators as first class values, though they differ in how termination is handled. Given first class iterators of this form, a programming language may always add a handy loop construct to recover the common foreach paradigm. (See Section 3.2 for a realization of this idea.) Traditionally Ruby has only supported iteration over one iterator at a time. An ad hoc solution to provide external iterators is the Generator library which relies on Ruby’s callcc operator. Using the Generator library however limits the iterator’s input and return capabilities. Ruby version 1.9, that is cur- rently under development, is expected to support internal and external iterators with an implementation based on OS Fibers. In the imperative languages (C#, Ruby and JavaScript) discussed here, a iterator is inherently a stateful object. Invoking. next () on a iterator to resume it, also changes its state. Since we are interested in modeling yield in a functional setting, we will modify this stateful behavior to an immutable one in Section 2.5.
2.4 Python, F#, Cω, CLU and other languages
Python [vRD03] versions prior to 2.5 [YvR01] have support for yield as an output only operator (like in C#). Python version 2.5, based on PEP 342 [vRE05], supports yield as an expression instead of a statement i.e., it has support for yield returning values. Both Python and JavaScript iterators can yield out values and take input values. They do not return values at the end of evaluation, but instead indicate termination by raising a distinguished exception. Given that these languages lack static types,
in principle, the return value could be encoded as the last yielded value or by some other convention. However, in practice this is inconvenient since one would have to always keep track of the last yielded value. CLU [Lis93] has support for an output only variadic yield and a for loop construct for consuming such iterators. It also attempts to capture the type of the yielded values in the type signature of iterators. Sather [MOSS96, Omo91] has an output only yield construct with weaker restrictions on the usage within loop constructs. Due to the absence of a formal description of the semantics, we are unsure of the precise nature of these restrictions. Cω [MSB03, BMS05] and F# [Sym03] have yield return statements, much like C#’s, that are pri- marily used to model potentially infinite lazy lists/streams. The Cω type system is enhanced with types such as int ∗ and int + to indicate if these are streams of zero or more integers. There are other languages, such as Groovy [KGK+07], Icon [GG83], that implement yield or iterator-like constructs that we have not detailed here.
2.5 Towards a generalized yield
In summary, an iterator may perform some arbitrarily complex computation. Its consumer, the calling context of the iterator, is abstracted from the details of this computation. Dually, the iterator does not know anything about the computation performed by its calling context, or even if it will be resumed again. The yield operator separates control flow concerns and allows us to encapsulate iterators and their callers into reusable software components. Based on our brief survey, we unify yield and iterator properties from the various languages, intro- ducing types as appropriate. An iterator can be thought of as a sub-process, a special computation, that is restricted to communicate with its calling context using yield. In the course of its computation it can yield out many values of type o and receive inputs of type i. When an iterator terminates it returns a final value of type r. Hence we can give iterators the abstract type Yield i o r. The construct yield is a delim- ited IO operation available to such iterators that enables them to communicate with their calling context. Each invocation of yield suspends the state of its iterator and suspended iterators are first-class values. Resuming a suspended iterator is at the discretion of the calling context and the value used to resume the iterator becomes available as the return value of the suspending yield. A single yield statement may be seen as the simplest possible interesting iterator with the abstract type o → Yield i o i, allowing more interesting iterators to be built by composition. A pure computation in contrast does not do any such IO, and only returns a result. Diagrammatically, if we visualize pure functions t 1 → t 2 and computations t as shown to the left, then we can visualize an iterator Yield i o r and the yield operator of type o → Yield i o i as shown to the right:
t 1 → t 2
t1 t t
t Yield i o r
r
o (^) i output/input to the context
yield
i
o i
o
A first attempt to formalize yield might be to simply add yield to the call-by-value λ-calculus. How- ever this is quickly seen to be inadequate. The main complication is to decide how to separate the iterator from its caller. To this end, we introduce a delimiting operator called run to explicitly separate the itera- tor from its calling context. The operator run marks the boundary of an iterator and delimits the action of yield. The argument to run is an opaque computation that can yield and it returns a concrete data structure that the calling context can interact with. This immediately suggests a monadic encapsulation
Evaluation is specified as the pure relation → which can be applied non-deterministically in any subexpression and the monadic reduction 7 → which forces reductions to happen in a certain order. (λx.e) e′^ → e[e′/x] 〈do x ← e 1 ; e 2 , E〉 7 → 〈e 1 , E[do x ← ; e 2 ]〉 case (Susp e 1 e 2 ) f g → f e 1 e 2 〈do x ← return e 1 ; e 2 , E〉 7 → 〈e 2 [e 1 /x], E〉 case (Result e) f g → g e The above reductions are completely standard [MS04]. In particular, the relation 7 → is closed over the transitive closure of →, i.e., an arbitrary number of → steps may be applied to the components of the configuration 〈e, E〉 for any 7 → step. The evaluation rule for run given below ties → and 7 → together and gives the semantics for the yield operation as delimited by run:
run e → Result e′^ if 〈e, 〉 7 →∗^ 〈return e′, 〉 run e → Susp e′^ (λx.run E[return x]) if 〈e, 〉 7 →∗^ 〈yield e′, E〉 A run expression evaluates the subexpression using any number of pure or monadic steps. If that evaluation terminates with a normal return then the returned value is also the final answer of the run expression. However if that evaluation encounters a yield, a new suspension is built. The suspension includes e′, the output of the yield operation that is communicated to the caller, and an iterator which can be called to resume the suspended computation. An important distinction between yield of the imperative languages presented and our functional semantics is that resuming a suspended iterator does not destroy it, unlike a call to MoveNext(). In other words, the term (λx.run E[return x]) is indeed a pure function that may be called any number of times. The same behavior can be achieved by cloning the IEnumerator and this is a topic occasionally discussed on various Internet message boards. We discuss the issue of the linear use of continuations and their resultant expressive power in Sections 3.2 and 5.
3.1 Haskell Implementations
To make the abstract semantics more relevant to implementers, we present two monadic implementations of yield in Haskell. These have the advantage of being immediately usable and the structure of the monads suggest implementation approaches for language implementers. Further, embedding the yield type system into Haskell serves as a proof of its soundness by appeal to the soundness of Haskell’s type system.
Frame Grabbing Implementation: One way to implement yield would be to use a yield occurrence as a trigger which starts the accumulation of pending stack frames. This accumulation stops when an explicit run statement is encountered. Below is the monadic realization of this which achieves the desired semantics. Note that the interface of the iterator and the opaque computation type Yield are the same in this monad.
data Iterator i o r = Result r | Susp o ( i −> Iterator i o r ) type Yield = Iterator
yield : : o −> Yield i o i yield v = Susp v return
instance Monad ( Yield i o ) where return = Result ( Result v ) >>= f = f v ( Susp v k ) >>= f = Susp v ( \ x −> ( k x )>>=f ) run : : Yield i o r −> Iterator i o r run = id
In many of the languages discussed in the introduction, yield suspends exactly the current method and the continuations captured by it may be described as one-frame or lexically delimited continuations. To implement such a version of yield, the frame-grabbing implementation only needs a calling convention or a compiler macro that can be used to suspend multiple stack frame by re-yielding from one frame to
the other, i.e., by translating call sites, such as “func()”, that don’t have an explicit run, to ones that yield explicitly, “foreach(o in func()) yield o”. While this implementation is inefficient due to the explicit frame-by-frame unwinding of the stack, it is interesting since it can be readily implemented in most languages. This is similar to nested iterator methods [JMPS05].
CPS Implementation: As suggested before, yield has close connection to continuations, and tech- niques studied for implementing continuations [Dan00, KBD98, HDI94, CHO99, BWD96] carry over as techniques for implementing yield. We can implement yield by instantiating the conventional continuation monad. The usual Cont monad has type (a → r) → r and here we adapt it by choosing the answer type to be Iterator i o b. The result type b of the iterator can be quantified since composition in the monad is independent of the final result. The input and output types (i and o) of the iterator are fixed for the duration of computation. The resulting CPS type Yield i o r allows for a completely standard definition of return and >>=, for which yield simply builds the suspension (Susp) and run passes the initial continuation (Result).
newtype Yield i o r = Yield { unY : : ( forall b. ( r −> ( Iterator i o b ) ) −> ( Iterator i o b ) ) } instance Monad ( Yield i o ) where return e = Yield ( \ k −> k e ) ( Yield e ) >>= f = Yield ( \ k −> e ( \ v −> ( unY ( f v ) ) k ) ) yield : : o −> Yield i o i yield v = Yield ( Susp v )
run : : Yield i o r −> Iterator i o r run ( Yield e ) = e Result In the usual monadic representation for delimited continuations such as [DJS07], delimiters reset or pushPrompt do not escape the monad. Although the iterator escapes the monad, it encapsulates the continuation in a pure value which forbids the control effect from leaking.
Other type systems: Another type system for yield results from relaxing the restriction of having i and o types fixed for the lifetime of the iterator computation, thereby letting each yield invocation chose a specific type. We do this by turning i and o into parametric types thereby allowing yield :: o a → Yield i o (i a). This type system may be realized by both the frame-grabbing implementation or the CPS implementation discussed previously by merely replacing type definitions. This requires the GHC −XExplicitForAll extension. For instance, the iterator type and the CPS type would be:
data Iterator i o r = Result r | forall a. Susp ( o a ) ( ( i a ) −> Iterator i o r ) data Yield i o r = Yield { unY : : ( forall b. ( r −> ( Iterator i o b ) ) −> ( Iterator i o b ) ) } yield : : o a −> Yield i o ( i a ) run : : Yield i o r −> Iterator i o r While the the parametric yield may be overkill for most applications, they are interesting in the context of encoding shift-reset as we will see in Section 4.
3.2 Examples
In this section we will start with simple examples of using yield that are readily expressible in existing languages, moving on to some that have no direct equivalent in any language that supports yield today. As a first example, we express a simple depth-first tree traversal function as an iterator. As expected, the function depthWalk only captures the traversal logic; it does not prescribe what to do with the yielded values. data Tree a = Leaf a | Node ( Tree a ) ( Tree a )
depthWalk : : Tree a −> Yield b a ( Tree b )
gained by just adding these abilities to a language’s yield implementation without adding non-linearly- used first-class delimited continuations with indefinite extent.
4 Delimited Continuations
The general folklore is that continuations are more expressive than all the yield variants commonly found in current languages. Indeed, in blogs and message boards discussing these various languages, one commonly finds statements expressing the limited nature of the relevant yield compared to “true” continuations. We can make these statements more precise by formalizing the connection between our generalized yield and the traditional shift and reset for delimited continuations: we can give encodings of yield-run in terms of the traditional shift-reset and vice versa. The following definitions realize yield and run in terms of the traditional control operators:
run e ≡ reset (do x ← e; return (Result x)) yield e ≡ shift (λk.return (Susp e k)) A run expression corresponds to a control delimiter. The body e is evaluated under this delimiter and its value is wrapped in the constructor Result before it is returned. A yield expression simply captures the continuation up to the closest delimiter and immediately returns this continuation as part of a suspension. The only complexity for the reverse encoding arises from the fact that the continuation captured by yield is only accessible through the suspension object to the context of the iterator. Hence it is necessary to have a little “interpreter” to recursively unwind the iterator one suspension at a time in order to extract the underlying delimited continuation.
shift e ≡ yield e interp iter = case iter reset e ≡ interp (run e) (λ f k. reset ( f (λi.interp (k i)))) (λr.r) It is possible to prove that the encodings above (in both directions) properly implement the desired operators. In order to make the proof accessible, we present the semantics of shift-reset in the same monadic style as the semantics for yield/run. The interesting rules are the following:
reset e → e′^ if 〈e, 〉 7 →∗^ 〈return e′, 〉 reset e → reset (e′(λx.reset E[return x])) if 〈e, 〉 7 →∗^ 〈shift e′, E〉 It is a straightforward exercise to check that the translation of each pair of operators is consistent with the semantics of the other pair. We omit the straightforward calculations. Operators shift-reset and yield have multiple type systems. The choice of type system for one set of operators affects types affordable by the other via translation. While the full relationship between the type systems of these operators needs further investigation, some connections can be made. The simple type system for yield allows for the following shift-reset with shift : ((a → ans) → SR a ans ans) → SR a ans a and reset : SR a ans ans → ans.
type SR i ans r = Yield i ( ( i −> ans ) −> C i ans ans ) r data C i ans r = C { unC : : SR i ans r }
shift : : ( ( a−>ans )−>SR a ans ans )−>SR a ans a shift e = yield ( C. e )
reset : : SR a ans ans −> ans reset e = interp ( run e ) where interp ( Susp f k ) = reset $ unC $ f $ \i −> interp ( k i ) interp ( Result r ) = r
The main restriction of this system is that it fixes both the answer type ans and the input type a of the continuations. The fact that the input type is fixed is an artifact of the fact that i and o are fixed for
an iterator. With the more expressive parametric type system for yield this restriction can be removed allowing for shift : ((a → ans) → SR ans ans) → SR ans a and reset : SR ans ans → ans.
type SR ans r = Yield In ( Out ans ) r data In a = In { unIn : : a } data Out ans a = Out ( a −> ans ) −> SR ans ans
shift : : ( ( a −> ans ) −> SR ans ans )−>SR ans a shift e = ( yield ( Out e ) ) >>= ( return. unIn )
reset : : SR ans ans −> ans reset e = interp ( run e ) where interp ( Susp ( Out f ) k ) = reset $ f $ \i −> interp ( k ( In i ) ) interp ( Result r ) = r
Here we have a fixed answer type ans but continuations of any input type can be captured. Handling full answer type polymorphism as in the system developed by Asai and Kameyama [AK07] is a topic of future work.
5 Conclusion
Motivating Delimited Continuations. In the first paper to introduce delimited continuations, Felleisen [Fel88] motivated the control operators F and prompt #, using a tree walking example. That example separates two processes using a prompt: a process that traverses a recursive data structure and produces the leaves as it encounters them; and a second process that consumes the leaves as it receives them. The expression used to process the leaf values is e = λl.(F (λk.(cons l (λ .# (k nil)))) This is essentially an implementation of an output-only yield operator: indeed each time the process yields it produces the pair of the output value and a continuation that is resumable by “_.” Although Felleisen does not isolate this pattern into a separate control operator, it is intriguing that programming with delimited continuations was first demonstrated by encoding a yield combinator and then program- ming with yield.
Generalized Coroutines. In a recent study of coroutines, de Moura et al. [dMI09] stress the lack of a single standard formalization of coroutines and study many constructs finally introducing a yield- like operator for an imperative language. The semantics of their operator involves a global store and stateful iterators which obscure the control aspects of the operator. Looking at their specification, one can sense some connection to continuation-based operators, but the entangled state effects prevent them from formalizing operational equivalence with delimited continuations.
Restricting the Power of Yield. Based on the introductory discussion, we can identify several variants of yield in the spirit of Berdine et. al. [BORT02] that are stylized uses of full delimited continuations, but less expressive than the full yield. An “internal-only yield” can be used only in the context of a foreach- like loop, where the iterators can do input, output and return and is much like the yield of Ruby where the continuation is never exposed. Alternately an “externalized yield” allows iterators that can be decoupled from foreach loops and can allow the use of multiple iterators at the same time giving us an operator that allows us to express the swap leaves problem but is still restricted to one-shot continuations. Another generalization that avoids continuations reuse is “yield with an explicit delimiter” where the control action is not delimited by method boundaries, but by an explicit run operation, thereby allowing yield to suspend multiple method frames, which — as noted in Section 3.1 — can be implemented in most languages by a frame accumulating approach. The differences in yield’s various semantics and its connection to continuations, coroutines and clo- sures have been the topic of much debate in various online forums, Lambda the Ultimate [HE06], comp .lang.ruby, python−list and more. Our formalization clarifies many of these intuitions and bridges
[MS04] Eugenio Moggi and Amr Sabry. An abstract monadic semantics for value recursion. ITA, 38(4), 2004. [MSB03] Erik Meijer, Wolfram Schulte, and Gavin Bierman. Programming with circles, triangles and rectangles. In XML Conference and Exposition, 2003. [Omo91] Stephen M. Omohundro. The Sather Language and Libraries. In TOOLS, pages 439–440, 1991. [Sym03] Don Syme. F# homepage. http://research.microsoft.com/en-us/um/cambridge/ projects/fsharp/, 2003. [TH00] D. Thomas and A. Hunt. Programming Ruby: the Pragmatic Programmer’s Guide. Addison-Wesley Longman Publishing Co., Inc., 2000. [vRD03] G. van Rossum and F. L. Drake. Python Language Reference Manual. Network Theory, 2003. [vRE05] G. van Rossum and P. Eby. PEP 342: Coroutines via Enhanced Generators. Python Software Founda- tion, 2005. [YvR01] K. P. Yee and G. van Rossum. PEP 234: Iterators. Python Software Foundation, 2001.
