Electrician Ultimate Exam

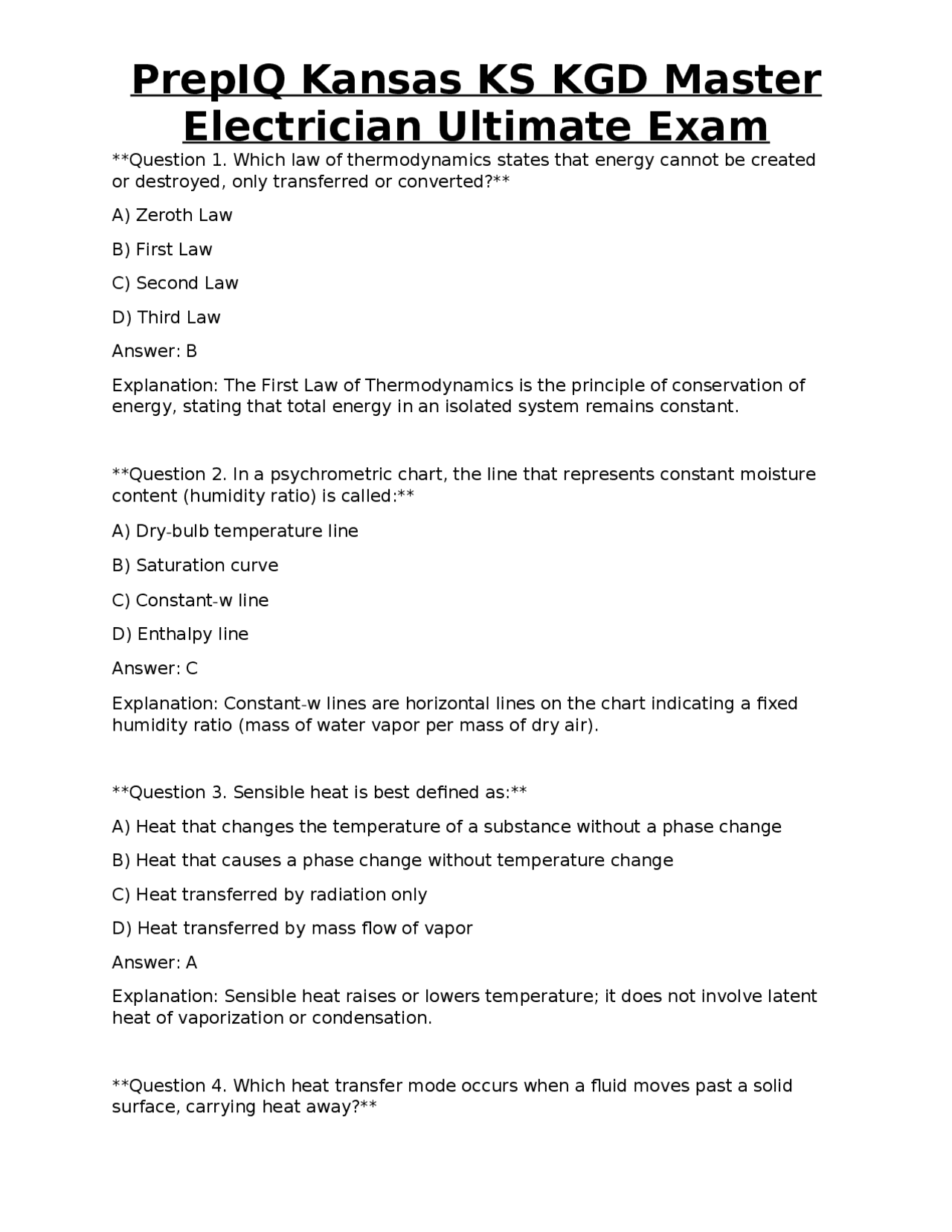

Question 1. Which law of thermodynamics states that energy cannot be created or destroyed, only transferred or converted? A) Zeroth Law B) First Law C) Second Law D) Third Law Answer: B Explanation: The First Law of Thermodynamics is the principle of conservation of energy, stating that total energy in an isolated system remains constant. Question 2. In a psychrometric chart, the line that represents constant moisture content (humidity ratio) is called: A) Dry-bulb temperature line B) Saturation curve C) Constant-w line D) Enthalpy line Answer: C Explanation: Constant-w lines are horizontal lines on the chart indicating a fixed humidity ratio (mass of water vapor per mass of dry air). Question 3. Sensible heat is best defined as: A) Heat that changes the temperature of a substance without a phase change B) Heat that causes a phase change without temperature change C) Heat transferred by radiation only D) Heat transferred by mass flow of vapor Answer: A Explanation: Sensible heat raises or lowers temperature; it does not involve latent heat of vaporization or condensation. Question 4. Which heat transfer mode occurs when a fluid moves past a solid surface, carrying heat away?
Electrician Ultimate Exam
A) Conduction B) Convection C) Radiation D) Sublimation Answer: B Explanation: Convection involves heat transfer through fluid motion (air or water) across a surface. Question 5. When calculating a Manual J residential load, which factor is NOT typically considered? A) Orientation of windows B) Occupant clothing insulation value (clo) C) Roof pitch angle D) Duct leakage losses Answer: C Explanation: Roof pitch affects attic heat gain but is not a direct input in Manual J; the program uses overall building envelope data. Question 6. In a refrigeration cycle, the component that reduces the pressure of the liquid refrigerant before it enters the evaporator is the: A) Compressor B) Condenser C) Expansion valve (or capillary tube) D) Receiver Answer: C Explanation: The expansion valve throttles the high-pressure liquid, causing a pressure drop and partial vaporization before the evaporator. Question 7. R-410A operates at a higher pressure than R-22 because: A) It has a higher molecular weight
Electrician Ultimate Exam
C) Solder the pipe using lead-based alloy D) Attach pipe insulation Answer: B Explanation: Brazing uses a filler metal that melts below the base metal’s melting point, producing a strong, leak-free joint suitable for refrigerant service. Question 11. An atmospheric gas furnace draws combustion air from: A) A dedicated forced-air intake plenum B) The surrounding indoor space C) A sealed outdoor vent D) A dedicated rooftop intake Answer: B Explanation: Atmospheric furnaces rely on natural draft and draw combustion air directly from the indoor environment. Question 12. In a condensing furnace, the condensate is typically drained through a: A) Pressure-rated vent pipe B) Gravity-driven PVC drain line C) Copper refrigerant line D) Dedicated electrical conduit Answer: B Explanation: Condensing furnaces produce water from flue gas condensation, which is removed via a gravity-driven PVC condensate drain. Question 13. The reversing valve in a heat pump is actuated by: A) A thermostatic expansion valve B) An electric solenoid C) A pressure differential across the evaporator D) A mechanical cam
Electrician Ultimate Exam
Answer: B Explanation: The reversing valve changes refrigerant flow direction using an electric solenoid controlled by the thermostat. Question 14. During a heat pump’s defrost cycle, which component operates in cooling mode? A) Outdoor fan B) Indoor coil C) Compressor only D) Reversing valve only Answer: A Explanation: The outdoor fan continues to run while the reversing valve switches to cooling mode, allowing the outdoor coil to melt frost. Question 15. Electric resistance heating elements are typically rated in: A) BTU/h per foot B) Watts per square foot C) Kilowatts per cubic foot D) Amps per inch Answer: B Explanation: Electric heating is specified in watts per square foot (or per unit length) to determine required load. Question 16. For a gas-fired furnace installed in a confined space, the minimum required combustion air opening size is: A) 1 in² per 1,000 BTU/hr B) 4 in² per 1,000 BTU/hr C) 10 in² per 1,000 BTU/hr D) 0.5 in² per 1,000 BTU/hr Answer: B
Electrician Ultimate Exam
Question 20. When performing TAB, the static pressure measured at the supply register should be compared to the design static pressure to determine: A) Duct leakage percentage B) Fan motor efficiency C) Airflow balance accuracy D) Refrigerant superheat Answer: C Explanation: TAB assesses whether the actual airflow matches design intent by comparing measured static pressure to design values. Question 21. A kitchen exhaust hood must be ducted to the outdoors with a minimum velocity of: A) 100 ft/min B) 250 ft/min C) 400 ft/min D) 600 ft/min Answer: B Explanation: The International Mechanical Code requires a minimum of 250 ft/min for kitchen exhaust to ensure effective contaminant removal. Question 22. Category III vent systems are typically used for: A) Direct-vent gas appliances B) High-temperature wood-stove flues C) Low-temperature natural-draft appliances D) Exhaust fans only Answer: B Explanation: Category III vents handle higher temperature gases (up to 1,200 °F) and are common for wood-stove or high-temperature furnace exhaust.
Electrician Ultimate Exam
Question 23. The minimum horizontal clearance from a vent termination to a window opening is: A) 2 ft B) 3 ft C) 4 ft D) 6 ft Answer: C Explanation: Most codes require at least 4 ft horizontal clearance to prevent re-entrainment of exhaust gases. Question 24. Type B vent terminations are required to be installed at least how many inches above the roof surface? A) 12 in. B) 24 in. C) 36 in. D) 48 in. Answer: B Explanation: Type B vents must be installed a minimum of 24 in. above the roof surface to allow proper draft and clearance. Question 25. When installing a Type L vent, the required clearance to combustible material is: A) 1 in. B) 2 in. C) 4 in. D) 6 in. Answer: C Explanation: Type L vents, which handle low-temperature vent gases, must maintain a minimum 4 in. clearance from combustible surfaces.
Electrician Ultimate Exam
A) P = VI
B) V = IR
C) I = √(P/R)
D) R = V/I²
Answer: B Explanation: Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R). Question 30. A flame sensor in a gas furnace is used to: A) Measure water temperature B) Detect the presence of a flame to prevent gas flow if no flame exists C) Regulate blower speed D) Control refrigerant pressure Answer: B Explanation: The flame sensor confirms combustion; if no flame is detected, it shuts off the gas valve for safety. Question 31. A thermocouple generates a voltage proportional to: A) The difference in temperature between its two junctions B) The absolute temperature of the hot junction only C) The resistance of the metal wire D) The current flowing through the circuit Answer: A Explanation: Thermocouples produce a voltage based on the temperature differential between the measuring (hot) and reference (cold) junctions. Question 32. In low-voltage thermostat wiring, the “C” wire provides: A) Cooling command signal B) Common return for the transformer’s 24 V supply C) Continuous power to the fan motor
Electrician Ultimate Exam
D) A safety ground Answer: B Explanation: The “C” (common) wire completes the 24 V AC circuit, supplying power to smart thermostats and other control devices. Question 33. A PSC (Permanent Split Capacitor) motor typically has: A) Two start capacitors and one run capacitor B) One start capacitor and one run capacitor C) Only a run capacitor D) No capacitors, it is a shaded-pole motor Answer: C Explanation: PSC motors use a single permanent run capacitor for both starting and running torque. Question 34. An ECM (Electronically Commutated Motor) differs from a PSC motor because it: A) Operates on DC power only B) Uses electronic control to vary speed and achieve higher efficiency C) Requires a separate start relay D) Has no windings Answer: B Explanation: ECMs are brushless DC motors with electronic controllers that adjust speed for improved efficiency. Question 35. OSHA 29 CFR 1926 requires which of the following when working on a roof above 6 ft? A) A safety harness attached to a personal fall arrest system B) Only a guardrail C) No specific protection if the surface is non-slippery D) A warning sign only
Electrician Ultimate Exam
Explanation: Constant relative humidity lines represent changes in dry-bulb temperature with the same moisture ratio, indicating sensible heat addition or removal. Question 39. The coefficient of performance (COP) of a heat pump is defined as: A) Heating capacity divided by electrical input power B) Cooling capacity divided by refrigerant mass flow C) Total system efficiency multiplied by 100 D) Ratio of latent heat to sensible heat Answer: A Explanation: COP = heating (or cooling) output (Btu/h) ÷ electrical input (W), indicating the efficiency of a heat pump. Question 40. When a refrigerant passes through a condenser, the primary heat transfer mechanism is: A) Conduction through the pipe wall B) Convection from the refrigerant to the ambient air or water C) Radiation to the surrounding environment D) Evaporation of the refrigerant Answer: B Explanation: In a condenser, refrigerant releases heat to the surrounding medium via convection. Question 41. Which of the following refrigerants is classified as an ODP-free (ozone-depleting-potential free) substance? A) R- 22 B) R- 12 C) R-410A D) R- 11 Answer: C
Electrician Ultimate Exam
Explanation: R-410A contains no chlorine and thus has zero ODP, making it ozone-friendly. Question 42. The term “superheat” in a refrigeration system refers to: A) The temperature difference between the refrigerant vapor and its saturation temperature at the evaporator outlet B) The temperature rise of refrigerant in the condenser C) The pressure increase across the expansion valve D) The amount of latent heat absorbed in the evaporator Answer: A Explanation: Superheat is the amount by which the refrigerant vapor temperature exceeds its saturation temperature at the evaporator outlet. Question 43. In a gas-fired furnace, the “induced-draft” blower is located: A) Inside the combustion chamber B) At the vent termination on the roof C) In the exhaust duct, pulling gases through the heat exchanger D) In the supply air register Answer: C Explanation: An induced-draft blower creates a negative pressure in the exhaust duct, pulling flue gases through the heat exchanger. Question 44. The minimum airflow required to prevent overheating of a condensing furnace’s heat exchanger is typically: A) 200 CFM per ton of cooling B) 300 CFM per ton of heating C) 400 CFM per ton of heating D) 500 CFM per ton of cooling Answer: B
Electrician Ultimate Exam
Question 48. The purpose of a “pressure-indicating controller” (PIC) on a refrigerant system is to: A) Measure suction line temperature B) Detect low-pressure conditions and shut down the compressor to prevent damage C) Control the expansion valve opening D) Regulate condenser fan speed Answer: B Explanation: A PIC monitors low suction pressure; if pressure falls below a preset limit, it disables the compressor to avoid oil starvation. Question 49. When using a “ductulator” for a 12-inch round duct delivering 800 CFM with a friction loss of 0.1 in. wg per 100 ft, the estimated duct length is: A) 50 ft B) 100 ft C) 150 ft D) 200 ft Answer: B Explanation: The Ductulator correlates airflow, duct size, and friction loss; for 800 CFM in 12-inch round duct at 0.1 in. wg/100 ft, the length approximates 100 ft. Question 50. According to SMACNA, the maximum spacing between duct supports for a horizontal duct up to 12 in. in diameter is: A) 4 ft B) 6 ft C) 8 ft D) 10 ft Answer: B Explanation: SMACNA recommends a maximum of 6 ft spacing for ducts ≤12 in. to prevent sagging.
Electrician Ultimate Exam
Question 51. The “balance point” temperature for a building is defined as: A) The outdoor temperature at which the heating system must operate at full capacity to maintain indoor setpoint B) The indoor temperature at which the cooling system reaches maximum efficiency C) The temperature at which the furnace’s pilot light ignites D) The dew point of the outdoor air Answer: A Explanation: The balance point is the outdoor temperature where heating load equals the system’s full output. Question 52. In a refrigeration system, the term “subcooling” refers to: A) Cooling the refrigerant vapor below its saturation temperature B) Cooling the liquid refrigerant below its saturation temperature before it enters the expansion device C) Raising the pressure of the refrigerant in the condenser D) Increasing the temperature of the suction line Answer: B Explanation: Subcooling is the process of lowering the temperature of the high-pressure liquid refrigerant below its saturation temperature, improving system efficiency. Question 53. Which of the following is a primary safety device on a gas-fired furnace that detects low water temperature in a boiler? A) High-limit switch B) Low-water cutoff (LWCO) C) Pressure relief valve D) Flame rollout sensor Answer: B Explanation: The LWCO shuts down the burner if water temperature falls below a safe threshold, preventing overheating.
Electrician Ultimate Exam
Question 57. A gas line that includes a “meter valve” must be installed with the valve oriented so that the flow direction arrow points: A) Toward the building interior B) Toward the gas meter C) Toward the pressure regulator D) Toward the appliance Answer: D Explanation: The flow direction arrow on a meter valve indicates the direction of gas flow, which must be toward the downstream appliance. Question 58. When sizing a copper refrigerant line for a 5-ton air conditioner, the recommended suction line diameter is: A) 3/8 in. B) 1/2 in. C) 5/8 in. D) 3/4 in. Answer: C Explanation: For a typical 5-ton system, a 5/8-inch suction line provides adequate capacity while limiting velocity and pressure drop. Question 59. The “heat-recovery ventilator” (HRV) improves indoor air quality by: A) Adding humidified air to the supply stream B) Exchanging heat between exhaust and incoming fresh air without mixing the airstreams C) Filtering particulates only D) Recirculating indoor air through the furnace coil Answer: B Explanation: HRVs transfer sensible heat from exhaust air to incoming fresh air, maintaining temperature while providing ventilation.
Electrician Ultimate Exam
Question 60. In a forced-air system, the “static pressure” measured at the supply plenum is the result of: A) Only the fan’s pressure increase B) The sum of pressure losses through ducts, filters, and registers C) Atmospheric pressure plus fan boost D) The pressure inside the furnace combustion chamber Answer: B Explanation: Static pressure is the cumulative loss due to friction and fittings throughout the distribution system. Question 61. For a direct-vent gas water heater, the vent pipe must be sized to handle a minimum exhaust flow of: A) 25 CFM B) 50 CFM C) 75 CFM D) 100 CFM Answer: C Explanation: Codes typically require a minimum of 75 CFM for direct-vent appliances to ensure proper draft. Question 62. The term “blower door” refers to a test used to: A) Measure duct leakage only B) Determine the overall building envelope air infiltration rate C) Verify the operation of furnace blower motors D) Adjust refrigerant pressure Answer: B Explanation: A blower door test pressurizes or depressurizes a building to quantify infiltration and leakage. Question 63. When installing a gas-fired furnace in a basement, the required minimum clearance from the furnace to the floor is:
