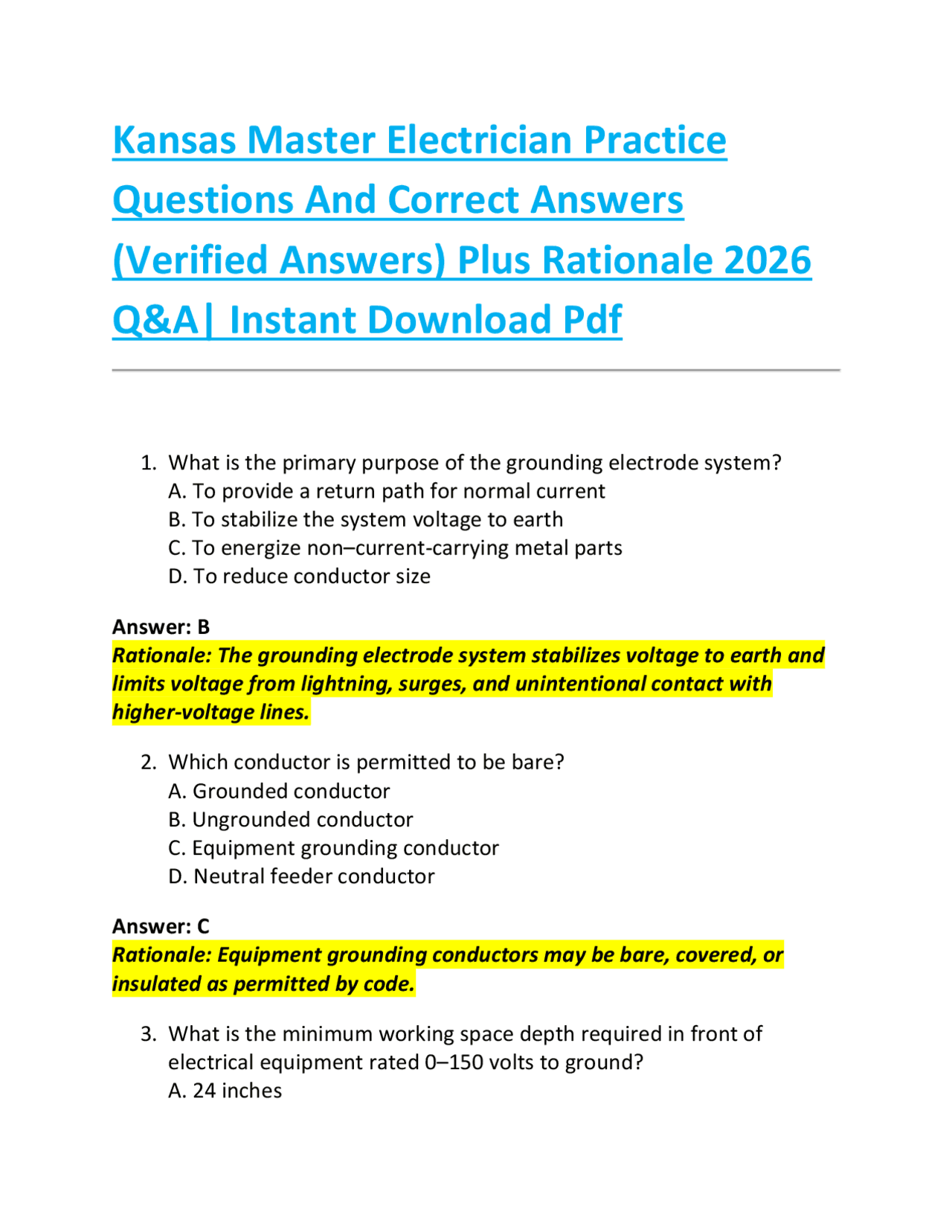

Kansas Master Electrician Practice
Questions And Correct Answers
(Verified Answers) Plus Rationale 2026
Q&A| Instant Download Pdf
- What is the primary purpose of the grounding electrode system? A. To provide a return path for normal current B. To stabilize the system voltage to earth C. To energize non–current-carrying metal parts D. To reduce conductor size
Answer: B Rationale: The grounding electrode system stabilizes voltage to earth and limits voltage from lightning, surges, and unintentional contact with higher-voltage lines.
- Which conductor is permitted to be bare? A. Grounded conductor B. Ungrounded conductor C. Equipment grounding conductor D. Neutral feeder conductor
Answer: C Rationale: Equipment grounding conductors may be bare, covered, or insulated as permitted by code.
- What is the minimum working space depth required in front of electrical equipment rated 0–150 volts to ground? A. 24 inches
B. 30 inches C. 36 inches D. 42 inches
Answer: C Rationale: A minimum of 36 inches of clear working space is required for equipment up to 150 volts to ground.
- Which type of load operates for three hours or more? A. Noncontinuous load B. Intermittent load C. Continuous load D. Variable load
Answer: C Rationale: A continuous load is defined as one where the maximum current is expected to continue for three hours or more.
- Branch-circuit conductors supplying a continuous load must be sized at least: A. 100% of the load B. 110% of the load C. 125% of the load D. 150% of the load
Answer: C Rationale: Conductors must be sized at 125% of the continuous load to prevent overheating.
- What is the maximum allowable voltage drop for a branch circuit recommended for efficiency? A. 2% B. 3% C. 4% D. 5%
- What is the minimum burial depth for rigid metal conduit under a residential driveway? A. 6 inches B. 12 inches C. 18 inches D. 24 inches
Answer: C Rationale: Rigid metal conduit requires a minimum burial depth of 18 inches under driveways.
- When must an AFCI be installed? A. Only in kitchens B. In all industrial occupancies C. In dwelling unit living areas D. Only in garages
Answer: C Rationale: AFCIs are required in most living areas of dwelling units to protect against arc faults.
- What is the purpose of a bonding jumper? A. To carry load current B. To connect grounding electrodes together C. To ensure electrical continuity of metal parts D. To reduce voltage drop
Answer: C Rationale: Bonding jumpers ensure metal parts are electrically continuous to prevent shock hazards.
- What is the maximum number of disconnects permitted for a service? A. Two B. Four
C. Six D. Eight
Answer: C Rationale: The service disconnecting means is limited to six disconnects grouped together.
- Which wiring method is NOT permitted in a hazardous (classified) location? A. Rigid metal conduit B. Intermediate metal conduit C. Nonmetallic-sheathed cable D. Mineral-insulated cable
Answer: C Rationale: Nonmetallic-sheathed cable is generally prohibited in hazardous locations.
- What type of motor protection device senses motor temperature directly? A. Overcurrent relay B. Thermal protector C. Fuse D. Circuit breaker
Answer: B Rationale: Thermal protectors respond directly to motor temperature rather than current alone.
- The grounded conductor is bonded to ground at which location? A. Every panelboard B. At the service disconnect C. At every receptacle D. At the transformer only
- What type of receptacle is required in bathrooms? A. Standard duplex B. GFCI-protected C. AFCI-protected only D. Isolated ground
Answer: B Rationale: Bathroom receptacles must be GFCI-protected for personnel safety.
- What does the interrupting rating of a circuit breaker indicate? A. Normal operating current B. Maximum voltage C. Maximum fault current it can safely interrupt D. Trip time delay
Answer: C Rationale: Interrupting rating defines the highest fault current the breaker can safely clear.
- Which is required when installing conductors in parallel? A. Different raceways B. Same length and material C. Smaller conductor size D. Separate grounding electrodes
Answer: B Rationale: Parallel conductors must be the same length, material, and size to ensure equal current sharing.
- What is the minimum number of grounding electrodes required for a service? A. One B. Two unless resistance is proven low C. Three D. Four
Answer: B Rationale: Two electrodes are required unless a single electrode measures 25 ohms or less.
- Which transformer connection provides a neutral point? A. Delta B. Open delta C. Wye D. Zigzag only
Answer: C Rationale: A wye connection provides a neutral point for grounded systems.
- What is the purpose of an equipment grounding conductor? A. Carry load current B. Provide surge protection C. Provide a low-impedance fault path D. Reduce voltage drop
Answer: C Rationale: Equipment grounding conductors provide a low-impedance path for fault current.
- What type of luminaire requires a disconnect within sight? A. LED recessed B. Fluorescent with ballast C. HID luminaires D. Portable lamps
Answer: C Rationale: HID luminaires require a disconnecting means within sight for servicing.
- Which test instrument is used to measure insulation resistance? A. Voltmeter B. Ohmmeter
Answer: B Rationale: One-family dwellings require a minimum 100-amp service disconnect rating.
- What device protects against arc faults in branch circuits? A. GFCI B. AFCI C. Surge protector D. Fuse
Answer: B Rationale: AFCIs detect and interrupt arc faults that can cause fires.
- What is the main hazard of excessive voltage drop? A. Shock B. Fire C. Equipment malfunction D. Overcurrent
Answer: C Rationale: Excessive voltage drop can cause improper equipment operation and damage.
- Which conductor must be identified green or bare? A. Neutral B. Line C. Equipment grounding D. Control
Answer: C Rationale: Equipment grounding conductors must be green, green with yellow stripes, or bare.
- What is the primary function of a transfer switch? A. Increase voltage B. Select power source
C. Provide overcurrent protection D. Ground the system
Answer: B Rationale: Transfer switches safely switch loads between normal and alternate power sources.
- Which occupancy requires the highest level of electrical reliability? A. Office building B. Retail store C. Hospital D. Warehouse
Answer: C Rationale: Hospitals require critical and essential electrical systems for life safety.
- What type of grounding electrode is a metal underground water pipe? A. Supplemental B. Made electrode C. Natural electrode D. Rod electrode
Answer: C Rationale: Metal underground water pipes qualify as natural grounding electrodes.
- What is the maximum fuse rating for tap conductors under the 10-foot rule? A. Equal to conductor ampacity B. 125% of conductor ampacity C. Not greater than the feeder OCPD D. Unlimited
C. Isolate faults without shutting down entire system D. Increase fault current
Answer: C Rationale: Selective coordination ensures only the affected circuit is disconnected during a fault.
- What is the minimum cover for direct-buried cable under a lawn? A. 6 inches B. 12 inches C. 18 inches D. 24 inches
Answer: C Rationale: Direct-buried cable generally requires 18 inches of cover under a lawn.
- What does a “listed” piece of equipment indicate? A. Approved by the installer B. Tested by a recognized testing laboratory C. Used in commercial buildings only D. Suitable for any environment
Answer: B Rationale: Listed equipment has been evaluated by a recognized testing laboratory.
- What is the main role of a master electrician in Kansas? A. Perform only residential wiring B. Supervise and ensure code compliance C. Sell electrical materials D. Inspect plumbing systems
Answer: B Rationale: Master electricians are responsible for supervision and ensuring installations meet code.
- Which system voltage is most common in commercial buildings? A. 120/ B. 120/ C. 277/ D. 240/
Answer: C Rationale: 277/480-volt systems are common in commercial and industrial applications.
- What is the maximum number of conductors allowed in a single conduit based on? A. Conduit length B. Ambient temperature C. Conduit fill percentage D. Voltage rating
Answer: C Rationale: Conduit fill rules limit the number of conductors to prevent overheating.
- What type of protection is required for emergency systems? A. Optional standby B. Ground fault only C. Automatic and reliable power D. Manual transfer only
Answer: C Rationale: Emergency systems require automatic, reliable power to protect life safety.
- Which wiring method offers the best mechanical protection? A. EMT B. PVC C. Rigid metal conduit D. Flexible metal conduit
- Which type of conduit is suitable for direct burial without additional protection? A. EMT B. RMC C. PVC Schedule 40 D. FMC
Answer: C Rationale: PVC Schedule 40 can be buried directly without additional mechanical protection, provided burial depth requirements are met.
- Which device provides short-circuit and overload protection for motors? A. Circuit breaker only B. Fuse only C. Motor starter with overload relay D. Contactor only
Answer: C Rationale: Motor starters with overload relays provide both short-circuit and overload protection.
- When installing a service mast, what is the minimum distance above the roof? A. 1 foot B. 2 feet C. 3 feet D. 4 feet
Answer: C Rationale: The NEC requires service masts to extend at least 3 feet above the roof for proper clearance and support of service drop conductors.
- What is the primary reason for using conduit supports? A. Reduce voltage drop B. Ensure mechanical protection and secure routing
C. Increase conductor ampacity D. Provide grounding
Answer: B Rationale: Conduit supports ensure raceways remain mechanically protected, aligned, and securely fastened.
- Which transformer configuration allows single-phase derived from a three-phase system? A. Delta-Delta B. Delta-Wye C. Wye-Delta D. Wye-Wye
Answer: B Rationale: Delta-Wye transformers provide a neutral point, allowing single-phase loads to be derived from a three-phase system.
- Which type of wiring method is allowed in exposed residential basements? A. Nonmetallic-sheathed cable B. Underground feeder cable C. Rigid metal conduit only D. Surface-mounted MC cable
Answer: A Rationale: Nonmetallic-sheathed cable is permitted in exposed locations in residential basements, provided it is properly supported.
- Which device detects arcs in series or parallel in branch circuits? A. GFCI B. AFCI C. Thermal overload relay D. Contactor
- What type of occupancy requires emergency lighting? A. Residential dwelling B. Industrial warehouse C. Assembly occupancy D. Agricultural barn
Answer: C Rationale: Assembly occupancies require emergency lighting to ensure safe egress in case of power failure.
- Which conductor identification color is required for equipment grounding? A. White B. Black C. Green or bare D. Red
Answer: C Rationale: Green or bare copper conductors are designated for equipment grounding.
- What is the main function of a surge protective device (SPD)? A. Provide continuous voltage B. Protect equipment from transient overvoltages C. Reduce current D. Control motor startup
Answer: B Rationale: SPDs protect equipment by diverting transient overvoltages from lightning or switching events.
- What is the minimum depth of a PVC conduit under a residential sidewalk? A. 6 inches B. 12 inches
C. 18 inches D. 24 inches
Answer: C Rationale: PVC conduit under sidewalks requires a minimum burial depth of 18 inches for mechanical protection.
- What is the purpose of a neutral in a 120/240V system? A. Carry ground current B. Provide return path for unbalanced load C. Reduce voltage drop D. Prevent overload
Answer: B Rationale: The neutral carries unbalanced current between phases in a multi-phase system.
- Which device is required at the first outlet of a kitchen countertop receptacle run? A. AFCI B. GFCI C. Isolated ground D. Surge protector
Answer: B Rationale: GFCI protection is required for all kitchen countertop receptacles to prevent shock hazards.
- What is the NEC-required working space width in front of equipment? A. 24 inches B. 30 inches C. 36 inches D. 42 inches
