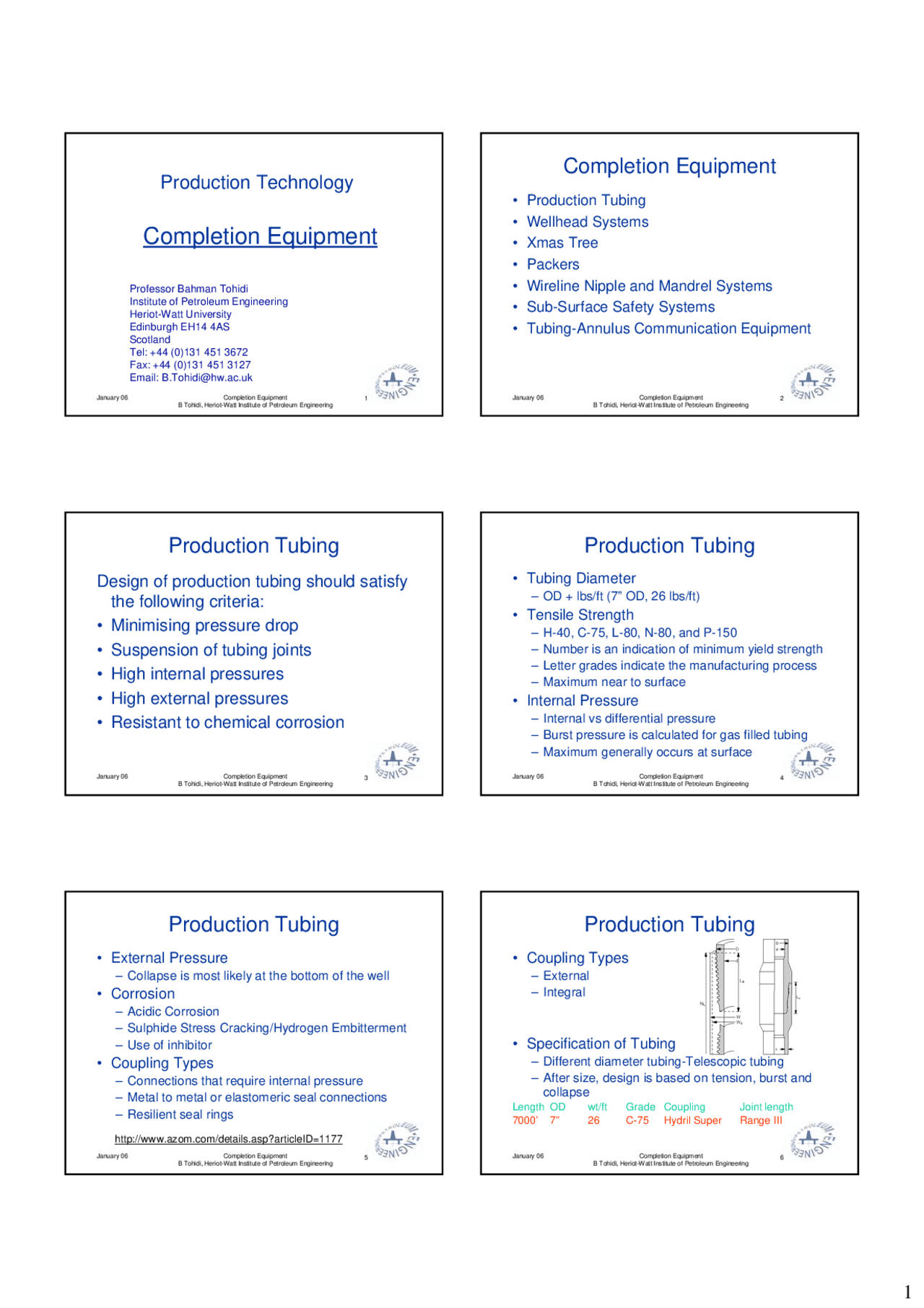

bg1
1
January 06 Completion Equipment
B Tohidi, Heriot-Watt Institute of Petroleum Engineering 1
1
Production Technology
Completion Equipment
Professor Bahman Tohidi
Institute of Petroleum Engineering
Heriot-Watt University
Edinburgh EH14 4AS
Scotland
Tel: +44 (0)131 451 3672
Fax: +44 (0)131 451 3127
January 06 Completion Equipment
B Tohidi, Heriot-Watt Institute of Petroleum Engineering 2
2
Completion Equipment
Production Tubing
Wellhead Systems
•Xmas Tree
Packers
Wireline Nipple and Mandrel Systems
Sub-Surface Safety Systems
Tubing-Annulus Communication Equipment
January 06 Completion Equipment
B Tohidi, Heriot-Watt Institute of Petroleum Engineering 3
3
Production Tubing
Design of production tubing should satisfy
the following criteria:
Minimising pressure drop
Suspension of tubing joints
High internal pressures
High external pressures
Resistant to chemical corrosion
January 06 Completion Equipment
B Tohidi, Heriot-Watt Institute of Petroleum Engineering 4
4
Production Tubing
Tubing Diameter
OD + lbs/ft (7” OD, 26 lbs/ft)
Tensile Strength
H-40, C-75, L-80, N-80, and P-150
Number is an indication of minimum yield strength
Letter grades indicate the manufacturing process
Maximum near to surface
Internal Pressure
Internal vs differential pressure
Burst pressure is calculated for gas filled tubing
Maximum generally occurs at surface
January 06 Completion Equipment
B Tohidi, Heriot-Watt Institute of Petroleum Engineering 5
5
Production Tubing
External Pressure
Collapse is most likely at the bottom of the well
Corrosion
Acidic Corrosion
Sulphide Stress Cracking/Hydrogen Embitterment
Use of inhibitor
Coupling Types
Connections that require internal pressure
Metal to metal or elastomeric seal connections
Resilient seal rings
http://www.azom.com/details.asp?articleID=1177
January 06 Completion Equipment
B Tohidi, Heriot-Watt Institute of Petroleum Engineering 6
6
Production Tubing
Coupling Types
External
Integral
Specification of Tubing
Different diameter tubing-Telescopic tubing
After size, design is based on tension, burst and
collapse
Length OD wt/ft Grade Coupling Joint length
7000’ 7” 26 C-75 Hydril Super Range III
pf3
pf4
pf5
pf8
pf9

Pré-visualização parcial do texto

Baixe 04 Completion equipments e outras Notas de estudo em PDF para Engenharia de Petróleo, somente na Docsity!

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Production Technology

Completion Equipment

Professor Bahman Tohidi

Institute of Petroleum Engineering

Heriot-Watt University

Edinburgh EH14 4AS

Scotland

Tel: +44 (0)131 451 3672

Fax: +44 (0)131 451 3127

Email: [email protected]

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Completion Equipment

• Production Tubing

• Wellhead Systems

• Xmas Tree

• Packers

• Wireline Nipple and Mandrel Systems

• Sub-Surface Safety Systems

• Tubing-Annulus Communication Equipment

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Production Tubing

Design of production tubing should satisfy

the following criteria:

• Minimising pressure drop

• Suspension of tubing joints

• High internal pressures

• High external pressures

• Resistant to chemical corrosion

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Production Tubing

• Tubing Diameter

– OD + lbs/ft (7” OD, 26 lbs/ft)

• Tensile Strength

– H-40, C-75, L-80, N-80, and P-

– Number is an indication of minimum yield strength

– Letter grades indicate the manufacturing process

– Maximum near to surface

• Internal Pressure

– Internal vs differential pressure

– Burst pressure is calculated for gas filled tubing

– Maximum generally occurs at surface

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Production Tubing

• External Pressure

– Collapse is most likely at the bottom of the well

• Corrosion

– Acidic Corrosion

– Sulphide Stress Cracking/Hydrogen Embitterment

– Use of inhibitor

• Coupling Types

– Connections that require internal pressure

– Metal to metal or elastomeric seal connections

– Resilient seal rings

http://www.azom.com/details.asp?articleID=

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Production Tubing

• Coupling Types

– External

– Integral

• Specification of Tubing

– Different diameter tubing-Telescopic tubing

– After size, design is based on tension, burst and

collapse

Length OD wt/ft Grade Coupling Joint length

7000’ 7” 26 C-75 Hydril Super Range III

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Well head

Xmas Tree

Wellhead Systems

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Wellhead Systems

Wellhead has the following functions:

  • Suspension of casings and tubings
  • Flanging up fluid flow devices
    • Xmas tree and/or BOPs
  • Hydraulic communication with annulus

Wellheads used on offshore platforms or land

based wells can be divided into:

  • Conventional Spool System
  • Compact Spool Systems
  • Mud Line Suspension System

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Conventional Spool System

  • Casing head housing (base flange)
    • Provides a tapered seat
  • A casing hanger will be attached to the last joint of

the casing

  • Cameron A. W.
  • Boll-weevil
  • Casing head spool
  • Tubing head spool
  • Pressure sealing
  • Between flanges by ring gaskets
  • Seal area above or within the hanger
  • If the casing projects into the base of casing head then a

seal ring system is required

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

X

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Compact Spool (UNIHEAD) System

  • In conventional wellhead BOP stack has to be

removed for any spool installation

  • Compact spool system is a one piece spool

which can provide hang-off areas for

suspension of at least two casing strings

  • Intermediate casing
  • The production casing
  • Production tubing

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Compact Spool System

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Xmas Tree

  • A solid block

construction uses of a

yoke piece

configuration

  • Normally the Xmas

Tree is connected by

a flange or clamp to

the top of the wellhead

Solid Block

Construction

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Xmas Tree

Cross Piece

Xmas Tree

Solid Block

Construction

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Packers

  • A packer provides physical isolation of the

casing/tubing(s) annulus above the

production zone. It can provide:

  • Well Protection
    • Corrosion Protection
    • Abrasion Protection
    • Casing/Wellhead Burst Protection
  • Production Stability
    • Preventing annulus heading

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Packers

  • Zonal Isolation
    • Selective or segregated production
  • Annulus to Tubing Injection
    • Gas lift or chemical
  • Injection Operations
    • Economic injection rate or fracturing
  • Temporary Isolation
    • Bridge plug

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Packers Components and Mechanics

  • Sealing Element(s)
    • one or more rings of elastomer
    • able to withstand P, T & chemical composition
    • a metal back up system to the packer elements
  • Slip System
    • mechanical latch keys located either above and/or

below the sealing element

  • They may support slackened off weight of tubing
  • Setting and Release Mechanism
  • Independent or integral part of completion string
  • Hold Down Buttons

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Classification of Packers

  • Permanency
    • Retrievable or Permanent
  • Stress state at the time of setting
    • Tension, Compression, or Neutral
  • Setting Mechanism
    • Weight set, Roto-mechanical set, Electric

wireline set, and Hydraulic set

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Packers-Setting Mechanism

Compression packers Tension packer

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Packers-Setting Mechanism

Compression and

tension packer

Permanent packer

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Packer Selection

  • Casing and tubing sizes
  • Depth of the well and anticipated

pressure

  • Annular fluid type and pressure

difference

  • Thermal stresses on the tubing
  • Whether tubing should be retrievable

without the packer

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Running Options for Packer

  • As an integral part of the completion string

using a hydraulic compression/tension weight

set or roto-mechanical

  • Packer being preset in the wellbore and

tubing run afterwards, potential for wireline

setting

  • Packer with the tailpipe are set on a

workstring or wireline

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Packer Selection

  • Casing and tubing sizes
  • Depth of the well and bottom-hole pressure
  • Annular fluid type and differential pressure
  • Extent of thermal stress and potential forces
  • Need for tubing retrieval without the packer
  • Bore size offered by the packer
  • Completion string equipment compatibility
  • The deviation angle, effect on setting

mechanism

  • The design, length and weight of tailpipe

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Packer/Tubing Seal

  • Geometrical Seal Design
    • Ring or Chevron Seal System
  • Chemical Composition of Seals

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Basic Types of Landing Nipple

  • Selective
    • Based on variable

internal profile

  • Associated with the

setting tool

  • Based on pre-spaced

magnet

  • Non-Selective
    • No go nipples

Baker non selective

nipple systems

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Ancillary Equipment for Nipples

  • Flow restriction due to

nipples

  • Turbulence and eddy

currents

  • Abrasive action
  • Flow Coupling
  • A relatively short, heavy-

walled completion

component

  • Protecting against abrasion

Baker flow coupling

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Sub Surface Safety Systems

  • They are required for:
    • Xmas Tree removal for workover
    • Removal of surface valves
    • Damage to Xmas Tree
    • Leakage on Xmas Tree
  • SSSV are available based on:
    • Direct Control (D.C.SSSV)
    • Remotely or Surface Controlled (S.C.SSSV)

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Directly Controlled (D.C.SSSV)

  • Differential pressure operated safety valves
  • Ambient or pre-charged type safety valves
  • Advantages:
    • Simple construction and operating principle
    • Easy installation and retrieval
    • Cheaper installation cost
  • Disadvantages
    • Not 100% reliable
    • Performance could be affected due to solid deposition
    • Testing of valve operation is not easy

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Surface Controlled (S.C.SSSV)

  • Held open by hydraulic

pressure

  • Either ball or flapper type
  • Tubing or wireline retrievable
    • Tubing retrievable must be

reliable

  • Tubing retrievable offer

larger flow area

Wireline retrievable

valve nipple system

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Ancillary Equipment for S.C.SSSV

  • Control line to valve or

nipple is required

  • The control line should be

strapped to the outside of

the tubing

  • It should be connected into

the base of the tubing

hanger

Control Line Cable

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Tubing-Annulus Communication Equipment

Circulation is required for:

  • To displace out the tubing contents to initiate

production

  • To displace tubing contents with a kill fluid
  • To allow continuous or intermittent injection, e.g.,
    • Pour point depressant
    • Corrosion or scale inhibitor
    • Gas for gas lift
  • Available options are:
    • Sliding side door or sliding sleeve
    • Side pocket mandrel with shear valve
    • Ported nipple

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Sliding Side Door or Sliding Sleeve

  • Consists of inner and and outer sleeves with slots and

seal rings

  • In the closed position, the inner mandrel or sleeve is

located such that the ports the outer tubing wall are

isolated by seals above and below on the inner

mandrel

  • Movement of the inner sleeve either upwards or

downwards can produce alignment of the slots on the

inner mandrel with the ports in the outer tubing

  • If failure to close the sleeve on jarring occurs, a

separation sleeve could be run which will land inside

the sliding sleeve and seal in the seal bores above

and below the slotted section of the inner sleeve

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Sliding Side Door or Sliding Sleeve

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Side Pocket Mandrel

  • Consists of a tubing

mandrel with ports located

on its outside wall

  • Basic types of mandrels

are:

  • Wireline replaceable valve is

located within the mandrel

body

  • The valve is located external

to the tubing mandrel

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Side Pocket

Mandrel

Common vales are:

  • Fluid injection valve which

operate on absolute or

differential pressure

  • Shear valve which are

designed to shear under

preset differential pressure

January 06 Completion Equipment

B Tohidi, Heriot-Watt Institute of Petroleum Engineering

Kick over

Tool

Running

Procedure
