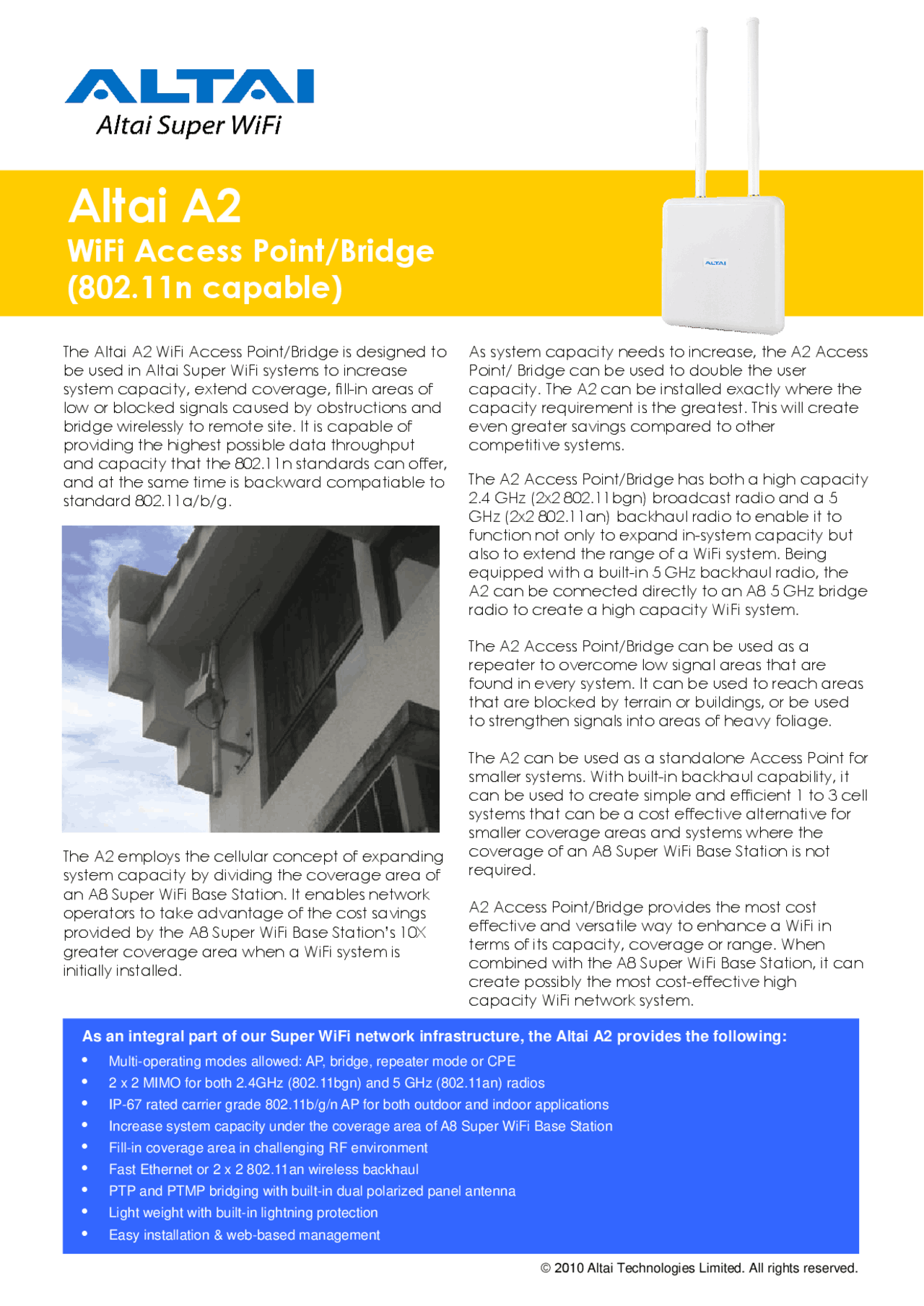

Altai
A2
WiFi Access Point/Bridge
(802.11n capable)
The Altai A
2
WiFi Access Point
/Bridge
is designed to
be used in Altai Super WiFi systems to increase
system capacity, extend coverage, fill-in areas of
low or blocked signals caused by obstructions and
bridge wirelessly to remote site. It is capable of
providing the highest possible data throughput
and capacity that the 802.11n standards can offer,
and at the same time is backward compatiable to
standard 802.11a/b/g.
T
The A2 employs the cellular concept of expanding
system capacity by dividing the coverage area of
an A8 Super WiFi Base Station. It enables network
operators to take advantage of the cost savings
provided by the A8 Super WiFi Base Station’s 10X
greater coverage area when a WiFi system is
initially installed.
As system capacity needs to increase, the A2
Access
Point/ Bridge can be used to double the user
capacity. The A2 can be installed exactly where the
capacity requirement is the greatest. This will create
even greater savings compared to other
competitive systems.
The A2 Access Point/Bridge has both a high capacity
2.4 GHz (2x2 802.11bgn) broadcast radio and a 5
GHz (2x2 802.11an) backhaul radio to enable it to
function not only to expand in-system capacity but
also to extend the range of a WiFi system. Being
equipped with a built-in 5 GHz backhaul radio, the
A2 can be connected directly to an A8 5 GHz bridge
radio to create a high capacity WiFi system.
The A2 Access Point/Bridge can be used as a
repeater to overcome low signal areas that are
found in every system. It can be used to reach areas
that are blocked by terrain or buildings, or be used
to strengthen signals into areas of heavy foliage.
The A2 can be used as a standalone Access Point for
smaller systems. With built-in backhaul capability, it
can be used to create simple and efficient 1 to 3 cell
systems that can be a cost effective alternative for
smaller coverage areas and systems where the
coverage of an A8 Super WiFi Base Station is not
required.
A2 Access Point/Bridge provides the most cost
effective and versatile way to enhance a WiFi in
terms of its capacity, coverage or range. When
combined with the A8 Super WiFi Base Station, it can
create possibly the most cost-effective high
capacity WiFi
network
system
.
As an integral part of our Super WiFi network infrastructure, the Altai A2 provides the following:
Multi
-
opera
ting modes allowed: AP,
bridge
, repeater mode or CPE
2 x 2 MIMO for both 2.4GHz (802.11bgn) and 5 GHz (802.11an) radios
IP-67 rated carrier grade 802.11b/g/n AP for both outdoor and indoor applications
Increase system capacity under the coverage area of A8 Super WiFi Base Station
Fill-in coverage area in challenging RF environment
Fast Ethernet or 2 x 2 802.11an wireless backhaul
PTP and PTMP bridging with built-in dual polarized panel antenna
Light weight with built-in lightning protection
Easy installation & web-based management
© 2010 Altai Technologies Limited. All rights reserved.
