As an integral part of our Super WiFi
network infrastructure, key benefits of
the Altai A8-E include:
•
Extended coverage in a Non-Line-of-
Sight (NLOS) environment which
matches the foot print of most
micro-cellular deployments in dense
urban environments
•
Multi-beam Smart Antenna
Technology to provide superior signal
strength and link budget in dense
urban environment deployments
•
Multi-radio platform to maximize both
uplink/downlink performance
•
Cellular architectural radio and
coverage planning specially designed
for city-wide WiFi deployments
•
Adaptive interference control to
mitigate the surrounding interference
effects
•
Supports real-time applications such
as VoIP, video-streaming and
interactive gaming with minimal
latency
•
Standard 802.11b/g access and
802.11a wireless backhaul
•
Fast Ethernet or integrated 802.11a
wireless backhaul
•
Flexible antenna deployment
including rooftop, wall, tower and
lamppost mounting
•
Remote configuration through the
Altai Wireless Management System
(AWMS)

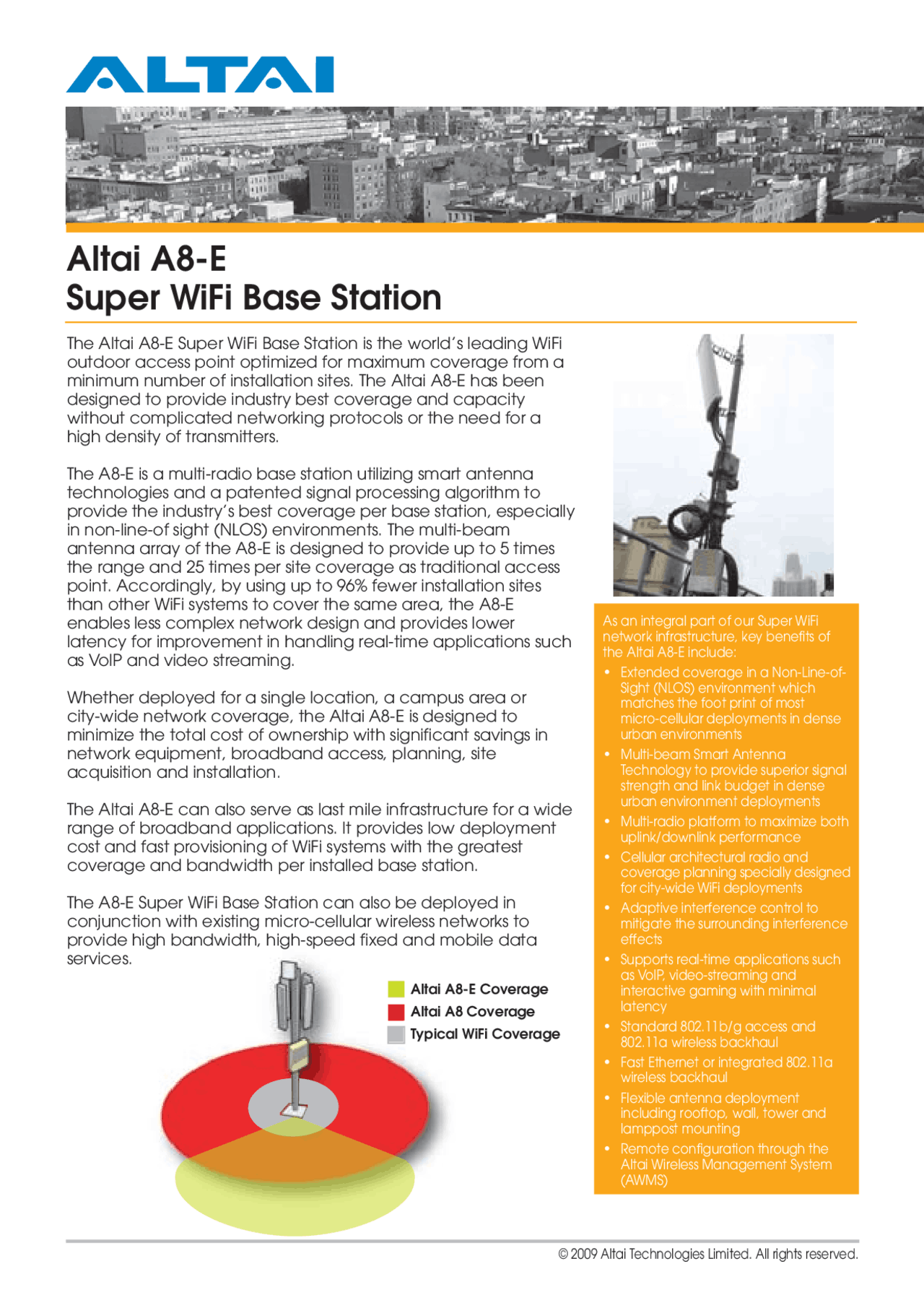

The Altai A8-E Super WiFi Base Station is the world’s leading WiFi
outdoor access point optimized for maximum coverage from a
minimum number of installation sites. The Altai A8-E has been
designed to provide industry best coverage and capacity
without complicated networking protocols or the need for a
high density of transmitters.
The A8-E is a multi-radio base station utilizing smart antenna
technologies and a patented signal processing algorithm to
provide the industry’s best coverage per base station, especially
in non-line-of sight (NLOS) environments. The multi-beam
antenna array of the A8-E is designed to provide up to 5 times
the range and 25 times per site coverage as traditional access
point. Accordingly, by using up to 96% fewer installation sites
than other WiFi systems to cover the same area, the A8-E
enables less complex network design and provides lower
latency for improvement in handling real-time applications such
as VoIP and video streaming.
Whether deployed for a single location, a campus area or
city-wide network coverage, the Altai A8-E is designed to
minimize the total cost of ownership with significant savings in
network equipment, broadband access, planning, site
acquisition and installation.
The Altai A8-E can also serve as last mile infrastructure for a wide
range of broadband applications. It provides low deployment
cost and fast provisioning of WiFi systems with the greatest
coverage and bandwidth per installed base station.
The A8-E Super WiFi Base Station can also be deployed in
conjunction with existing micro-cellular wireless networks to
provide high bandwidth, high-speed fixed and mobile data
services.
Altai A8-E
Super WiFi Base Station
© 2009 Altai Technologies Limited. All rights reserved.
Altai A8 Coverage
Altai A8-E Coverage
Typical WiFi Coverage
