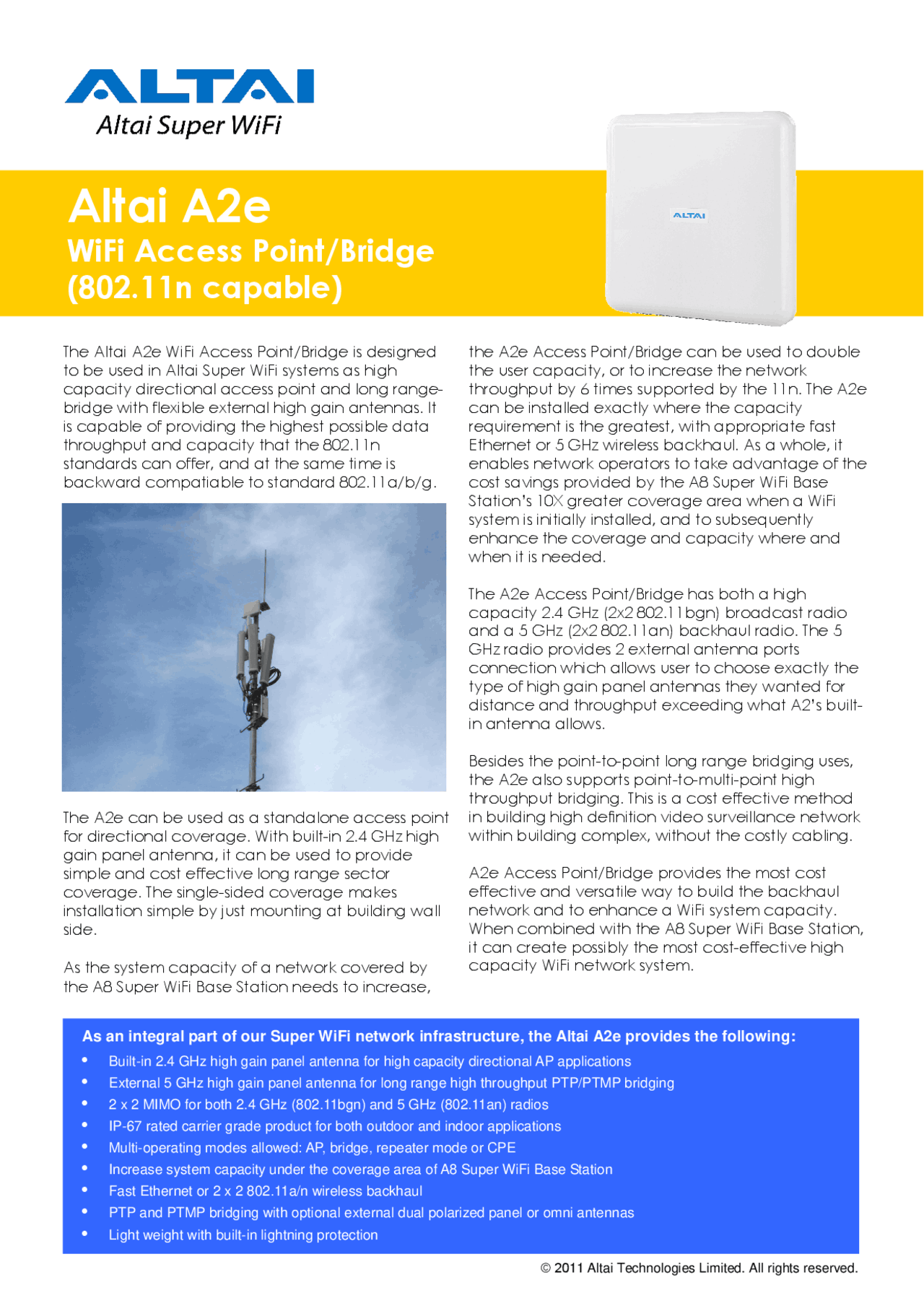

Altai
A2
e
WiFi Access Point/Bridge
(802.11n capable)
The Altai A
2
e
WiFi Access Point
/Bridge
is designed
to be used in Altai Super WiFi systems as high
capacity directional access point and long range-
bridge with flexible external high gain antennas. It
is capable of providing the highest possible data
throughput and capacity that the 802.11n
standards can offer, and at the same time is
backward compatiable to standard 802.11a/b/g.
The A2e can be used as a standalone access point
for directional coverage. With built-in 2.4 GHz high
gain panel antenna, it can be used to provide
simple and cost effective long range sector
coverage. The single-sided coverage makes
installation simple by just mounting at building wall
side.
As the system capacity of a network covered by
the
A8
Super
WiFi Base Sta
tion needs to increase,
the A2
e
Access Point/
Bridge
can be used to
double
the user capacity, or to increase the network
throughput by 6 times supported by the 11n. The A2e
can be installed exactly where the capacity
requirement is the greatest, with appropriate fast
Ethernet or 5 GHz wireless backhaul. As a whole, it
enables network operators to take advantage of the
cost savings provided by the A8 Super WiFi Base
Station’s 10X greater coverage area when a WiFi
system is initially installed, and to subsequently
enhance the coverage and capacity where and
when it is needed.
The A2e Access Point/Bridge has both a high
capacity 2.4 GHz (2x2 802.11bgn) broadcast radio
and a 5 GHz (2x2 802.11an) backhaul radio. The 5
GHz radio provides 2 external antenna ports
connection which allows user to choose exactly the
type of high gain panel antennas they wanted for
distance and throughput exceeding what A2’s built-
in antenna allows.
Besides the point-to-point long range bridging uses,
the A2e also supports point-to-multi-point high
throughput bridging. This is a cost effective method
in building high definition video surveillance network
within building complex, without the costly cabling.
A2e Access Point/Bridge provides the most cost
effective and versatile way to build the backhaul
network and to enhance a WiFi system capacity.
When combined with the A8 Super WiFi Base Station,
it can create possibly the most cost-effective high
capacity WiFi network system.
As an integral part of our Super WiFi network infrastructure, the Altai A2e provides the following:
Built
-
in
2.4 GHz high gain panel antenna for
high capacity
directional AP applications
External 5 GHz high gain panel antenna for long range high throughput PTP/PTMP bridging
2 x 2 MIMO for both 2.4 GHz (802.11bgn) and 5 GHz (802.11an) radios
IP-67 rated carrier grade product for both outdoor and indoor applications
Multi-operating modes allowed: AP, bridge, repeater mode or CPE
Increase system capacity under the coverage area of A8 Super WiFi Base Station
Fast Ethernet or 2 x 2 802.11a/n wireless backhaul
PTP and PTMP bridging with optional external dual polarized panel or omni antennas
Light weight with built-in lightning protection
© 2011 Altai Technologies Limited. All rights reserved.
