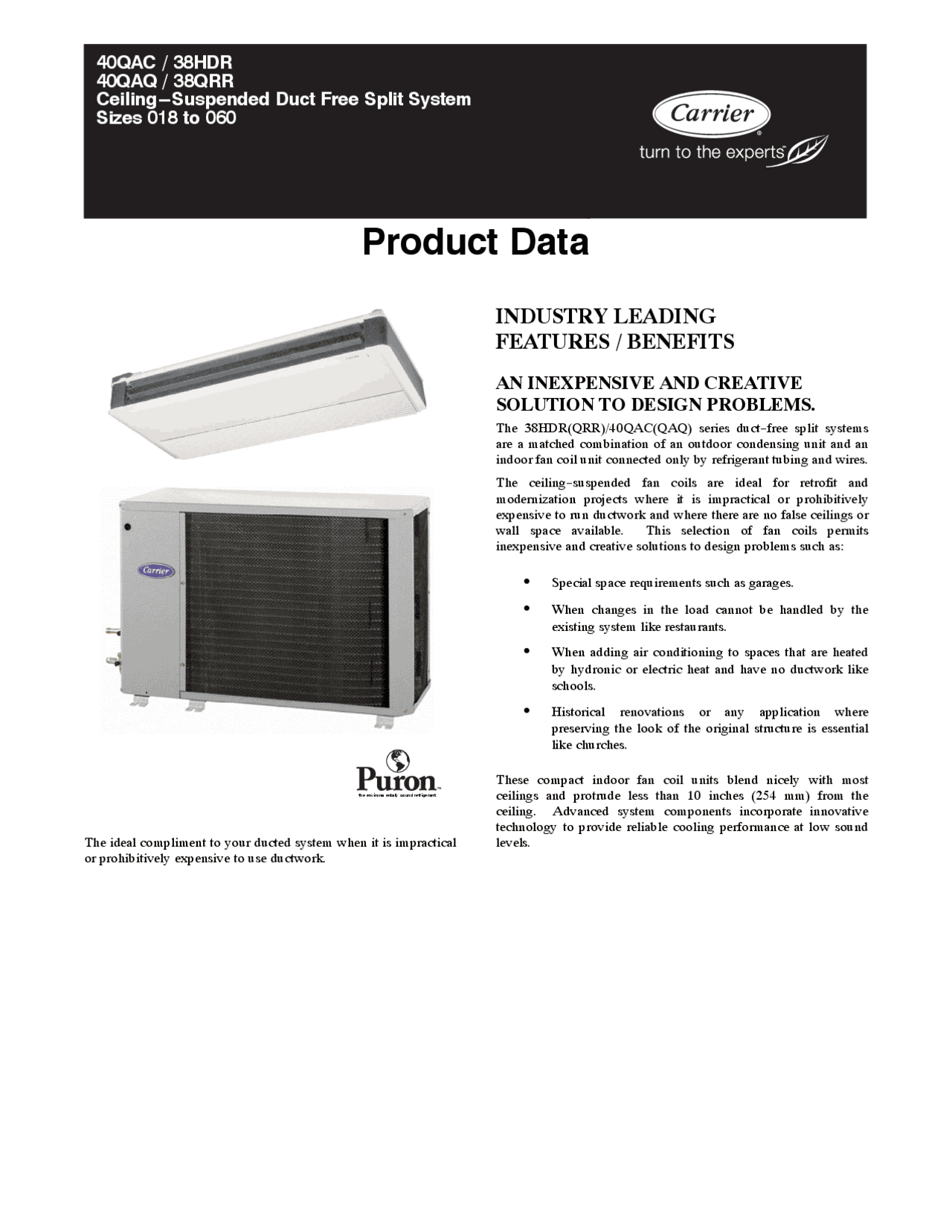

Product Data
40QAC / 38HDR
40QAQ / 38QRR
Ceiling---Suspended Duct Free Split System
Sizes 018 to 060
the environmentally sound refrigerant
The ideal compliment to your ducted system when it is impractical
or prohibitively expensive to use ductwork.
INDUSTRY LEADING
FEATURES / BENEFITS
AN INEXPENSIVE AND CREATIVE
SOLUTION TO DESIGN PROBLEMS.
The 38HDR(QRR)/40QAC(QAQ) series duct--free split systems
are a matched combination of an outdoor condensing unit and an
indoor fan coil unit connected only by refrigerant tubing and wires.
The ceiling--suspended fan coils are ideal for retrofit and
modernization projects where it is impractical or prohibitively
expensive to run ductwork and where there are no false ceilings or
wall space available. This selection of fan coils permits
inexpensive and creative solutions to design problems such as:
S Special space requirements such as garages.
S When changes in the load cannot be handled by the
existing system like restaurants.
S When adding air conditioning to spaces that are heated
by hydronic or electric heat and have no ductwork like
schools.
S Historical renovations or any application where
preserving the look of the original structure is essential
like churches.
These compact indoor fan coil units blend nicely with most
ceilings and protrude less than 10 inches (254 mm) from the
ceiling. Advanced system components incorporate innovative
technology to provide reliable cooling performance at low sound
levels.
LOW SOUND LEVELS
When noise is a concern, ceiling--suspended duct--free split systems
are the answer. The indoor units are whisper quiet. There are no
compressors indoors, either in the conditioned space or directly
over it, and there is none of the noise usually generated by air
being forced through ductwork.
When sound ordinances and proximity to neighbors demand quiet
operation, the 38HDR/QRR unit is the right choice: The advanced,
blow--through horizontal airflow design distributes air more evenly
over the coil.
SECURE OPERATION
If security is an issue, outdoor and indoor units are connected only
by refrigerant piping and wiring to prevent intruders from crawling
through ductwork. In addition, since 38HDR/QRR units can be
installed close to an outside wall, coils are protected from vandals
and severe weather.
FAST INSTALLATION
The small footprint of the outdoor units provide additional
benefits. Because they require minimal service and airflow
clearances, the outdoor units can be located virtually anywhere --
on the ground, roof, balcony, under a deck, or even mounted to an
outside wall.
The ceiling--suspended unit has its own mounting bracket for
easier installation. Since there is no need to run ductwork and only
piping and wiring is required between the indoor and outdoor
units, there is minimal disruption to customers in the workplace,
making this system ideal for retrofit applications.
SIMPLE SERVICING AND
MAINTENANCE
Saving time and money was a big consideration when designing
these systems.
On all indoor units, service and maintenance expense is reduced
due to easy--to--use cleanable filters and the ability to service the
unit from the bottom by removing the filter tracks.
On the outdoor units, a single panel provides immediate access to
the isolated compressor and control compartment, allowing a
service technician easy access to check the unit operation without a
loss of condenser airflow. In addition, the blow--through design of
the outdoor section means that dirt accumulates on the inside
surface of the coil. Coils can be cleaned from the outside using a
pressure hose and mild detergent without removing grilles or using
fin combs.
BUILT--IN RELIABILITY
Duct--free split system indoor and outdoor units are designed to
provide years of trouble--free operation.
The high wall indoor units include protection against freeze--up.
The condensing units and heat pumps are also protected. There is
a three minute time delay before the compressor will start.
An oversized accumulator on heat pumps, high and low pressure
switches ( loss of pressure switch on heat pumps), and compressor
internal overload protection will ensure a robust system that is ideal
for light commercial applications.
INDIVIDUAL ROOM COMFORT
Maximum comfort is provided because each space can be
controlled individually based on usage pattern. The
ceiling--suspended units are equipped with motorized louvers
which permits optimal room air mixing to eliminate hot and cold
spots for occupant comfort. In addition, year--round comfort can be
provided with heat pumps.
ECONOMICAL OPERATION
The duct--free split system design allows individual room heating
or cooling when required. There is no need to run large supply--air
fans or chilled water pumps to handle a few spaces with unique
load patterns. In addition, because air is moved only in the space
required, no energy is wasted moving air through ducts.
EASY--TO--USE CONTROLS
The ceiling--suspended units have electro--mechanical controls and
can be controlled by one of three user friendly thermostats that
mount on the wall.
FLEXIBILITY
A variety of accessories simplify the installation process and help
meet system requirements and weather considerations. Available
accessories are listed in the Standard Features and Accessories
section of this document.
AGENCY LISTINGS
All systems are listed with AHRI (Air Conditioning &
Refrigeration Institute), and UL.
40QAC/38HDR -- 40QAQ/38QRR
STANDARD FEATURES AND ACCESSORIES
Ease Of Installation Compact Size S Hanging Bracket For Indoor Unit S Stacking Kit A Wall Mounting Kit A Condensate Pump A Comfort Features Automatic Air Sweep S Auto Restart Function S Auto Changeover On Heat Pumps S Energy Saving Features Stop/Start Timer S Safety And Reliability 3 Minute Time Delay For Compressor S Over Current Protection For Compressor S High and Low Pressure Switches on Cooling Only Units S High Pressure Switch and Loss Of Charge Switch On HP S Indoor Coil Freeze Protection S Factory Supplied Filter Dryer For Field Installation S Accumulator On Heat Pumps Units S Ease Of Service And Maintenance Control Box Accessible From Bottom Of Unit S Cleanable Filters S Liquid Line Pressure Tabs S Suction And Discharge Pressure Tabs S Application Flexibility 208/230 and 460 3 Phase on size 036, 048, and 060 S Electric Heat On 40QAQ Units S Long lines up to 200 Ft (accessories required) A Outside Air Intake Kit A Power Ventilation Kit A Low Ambient Controls ( ---20° F) A Knock Out For Outside Air Intake S Wind Baffles A Wall Mounted Thermostats A Warranty 5 ---Year Compressor Warranty S 1 ---Year Parts Warranty S Compressor Extended Warranty Years 6 Thru 10 O All Parts And Labor Years 2 Thru 5 O All Parts And Labor Years 2 Thru 5, Compressor Years 6 Thru 10 O Legend S Standard A Accessory O Optional
OUTDOOR UNITS
LOW AMBIENT KIT
The kit controls condenser fan cycling using a pressure switch. It is
specifically designed to control fan--motor cycles in response to
saturated condensing pressure. This device maintains a constant
saturated condensing temperature of 100 _F ± 10 _F (37.78_C ±
- -12.22 _C) at outdoor--air temperatures between 55 _F and --20 _F
(12.78_C ± - -12.22_C), and can be used on all outdoor units
without changing the outdoor fan motor.
WINTER START CONTROL
The Winter Start Control is a SPST delay relay. the control
bypasses the low pressure switch for approximately 3 minutes to
permit start--up for cooling operation under low load conditions at
low ambient temperatures. This relay is recommended on all
systems that have the accessory Low Ambient Kit. Winter Start
Control can also be used to provide low ambient cooling at
outdoor ambient temperatures between 55_F and 40_F (12.8_C
and 4.4_C).
ISOLATION RELAY
To be used when Low Ambient Kit is used with heat pumps. This
will ensure that the pressure switch is bypassed if unit is running in
heat pump mode.
LIQUID LINE SOLENOID VALVE
The Liquid Line Solenoid Valve is an electronically operated
shutoff valve that is installed at the outdoor unit to stop and start
refrigerant flow in response to compressor operation. The valve
maintains a column of refrigerant in the liquid line between
compressor operating cycles and is required for certain long--line
applications and to improve system performance.
CRANKCASE HEATER
The Crankcase Heater is available for units with scroll compressors
and clamps onto the compressor oil sump. It is recommended for
low ambient and long line applications.
WIND BAFFLES
The Wind Baffle is an accessory sheet metal wrapper used to
provide improved unit operation during high winds and is
recommended whenever the Low Ambient Kit is used.
40QAC/38HDR -- 40QAQ/38QRR
STANDARD FEATURES AND ACCESSORIES CONTINUED
INDOOR UNITS
CONDENSATE PUMP
(part # 53DS--900------081)
For those applications where the ceiling--suspended unit is not
installed close to an outside wall, and an adequate pitch cannot be
provided, the pump mounts inside the unit with quick plug--in
connections and provide a maximum lift capability of 20 inches
(508 mm).
A
Fig. 1 – Condensate Pump
FRESH AIR INTAKE KIT
(Part # 53DS--900------006)
When the ceiling--suspended unit is installed against an outside
wall, the Fresh Air Intake Kit provides variable (up to 30%) fresh
air capability. The kit has a filter that mounts at the fan coil unit
and provides filtering of the outside air before it enters the unit.
POWER VENTILATION KIT
(Part # 53DS--900------066)
The Power Ventilation Kit is used in conjunction with the Fresh
Air Intake Kit and is used when the unit is not installed against an
outside wall and where static pressure needs to be overcome.
REAR OF INDOOR UNIT COVER
INDOOR UNIT (TOP)
ADJUSTABLE VENTILATION AIR DAMPER AIR FILTER
A
Fig. 2 – Fresh Air Intake Kit
40QAC/38HDR -- 40QAQ/38QRR
AHRI CAPACITY RATINGS*
System Type Outdoor Section^ Indoor Section^
Standard CFM (^) Net Cool- ing BTUH SEER^ EER^
High Heat Outdoor Indoor BTUH HSPF
Cooling
38HDR018 --- --- ---3 40QAC024 --- --- ---3 1720 480 18,000 13 11.5 N/A N/A
38HDR024 --- --- ---3 40QAC024 --- --- ---3 1720 550 23,000 13 11.5 N/A N/A
38HDR030 --- --- ---3 40QAC036 --- --- ---3 3900 840 29,000 13 12.0 N/A N/A
38HDR036 --- --- ---3 40QAC036 --- --- ---3 3900 840 33,000 13 11.4 N/A N/A
38HDR036 --- --- ---5 40QAC036 --- --- ---3 3900 840 33,000 13 11.4 N/A N/A
38HDR036 --- --- ---6 40QAC036 --- --- ---3 3900 840 33,000 13 11.4 N/A N/A
38HDR048 --- --- ---3 40QAC048 --- --- ---3 3900 1130 46,000 13 11.5 N/A N/A
38HDR048 --- --- ---5 40QAC048 --- --- ---3 3900 1130 46,000 13 11.5 N/A N/A
38HDR048 --- --- ---6 40QAC048 --- --- ---3 3900 1130 46,000 13 11.5 N/A N/A
38HDR060 --- --- ---3 40QAC060 --- --- ---3 3900 1600 57,000 13 11.4 N/A N/A
38HDR060 --- --- ---5 40QAC060 --- --- ---3 3900 1600 57,000 13 11.4 N/A N/A
38HDR060 --- --- ---6 40QAC060 --- --- ---3 3900 1600 57,000 13 11.4 N/A N/A
Heat PumpsHeat Pumps
38QRR018 --- --- ---3 40QAQ024 --- --- ---3 1720 480 17,000 13 11.7 17,000 7.
38QRR024 --- --- ---3 40QAQ024 --- --- ---3 1720 550 23,000 13 11.4 23,800 7.
38QRR030 --- --- ---3 40QAQ036 --- --- ---3 3900 840 28,000 13 11.2 28,800 7.
38QRR036 --- --- ---3 40QAQ036 --- --- ---3 3900 840 33,000 13 11.6 32,000 7.
38QRR036 --- --- ---5 40QAQ036 --- --- ---3 3900 840 33,000 13 11.6 32,000 7.
38QRR036 --- --- ---6 40QAQ036 --- --- ---3 3900 840 33,000 13 11.6 32,000 7.
38QRR048 --- --- ---3 40QAQ048 --- --- ---3 3900 1130 45000 13 11.5 45000 7.
38QRR048 --- --- ---5 40QAQ048 --- --- ---3 3900 1130 45000 13 11.5 45000 7.
38QRR048 --- --- ---6 40QAQ048 --- --- ---3 3900 1130 45000 13 11.5 45000 7.
38QRR060 --- --- ---3 40QAQ060 --- --- ---3 3900 1600 56000 13 11.4 56000 7.
38QRR060 --- --- ---5 40QAQ060 --- --- ---3 3900 1600 56000 13 11.4 56000 7.
38QRR060 --- --- ---6 40QAQ060 --- --- ---3 3900 1600 56000 13 11.4 56000 7.
*Air Conditioning, Heating & Refrigeration Institute
Legend HSPF --- Heating Seasonal Performance Factor
EER --- Energy Efficiency Rating SEER --- Seasonal Energy Efficiency Ratio NOTES :
- Ratings are net values reflecting the effects of circulating fan heat. Ratings are based on: Cooling Standard: 80_F (26.67_C) db, 67_F (19.44_C) wb air entering indoor unit and 95_F (35_C) db air entering outdoor unit. High Temperature Heating Standard: 70_F (21.11_C) db air entering indoor unit and 47_F (8.33_C) db, 43_F (6.11_C) wb air entering outdoor unit.
- Ratings are based on 25 ft. (7.62 m) of interconnecting refrigerant lines.
- All system ratings are based on fan coil units operating at high fan speed. Consult Physical Data tables for airflows at all available fan speeds.
CLEARANCES -- OUTDOOR UNIT
A
D B
Air-inlet
Air-outlet
C
E
A
UNIT Coil Facing Wall --- in. (mm) Fan Facing Wall --- in. (mm) A 24 (610) 24 (610) B 36 (914) 36 (914) C 36 (914) 8 (203) D 6 (152) 8 (203) E 6 (152) 8 (203)
Fig. 4 – Outdoor Unit Clearance
40QAC/38HDR -- 40QAQ/38QRR
OUTDOOR UNIT DIMENSIONS
H
G
L
A
B
1"
8" 4 1/2"
1 7/16"
UNIT
SERIES
ELECTRICAL
CHARACTERISTICS
A
B
C
D
E
F
G
H
J
K
L
M
N
P
OPERATINGWEIGHT(lbs)
SHIPPING
WEIGHT(lbs)
SHIPPING
DIMENSIONS (L x W x H)
38HDR
1
X^
O
O
O
25 1/8"
36 15/16"
14 9/16"
16"
23 7/16"
17 3/16"
17 1/8"
22"
13"
6 5/8"
11 1/4"
5/8"
2 15/16"
6"
155
171
42 9/10" X 18" X 28 1/10"
38HDR
1,
X^
O
O
O
31 1/8"
36 15/16"
14 9/16"
16"
23 7/16"
17 3/16"
23 1/8"
28"
14"
6 3/4"
11 5/8"
5/8"
2 15/16"
6"
180
198
42 9/10" X 18" X 34 1/10"
38HDR
1
X^
O
O
O
37 3/16"
44 9/16"
17 1/16"
18 7/16"
30 1/2"
19 5/8"
29 3/16"
34 1/16"
13 11/16"
8 1/8"
15 7/8"
3/4"
3 7/16"
6 1/2"
200
223
50 1/2" X 20 1/2" X 40 2/10"
38HDR
1
X^
O
X^
X
37 3/16"
44 9/16"
17 1/16"
18 7/16"
30 1/2"
19 5/8"
29 3/16"
34 1/16"
13 11/16"
8 1/8"
15 7/8"
3/4"
3 7/16"
6 1/2"
218
240
50 1/2" X 20 1/2" X 40 2/10"
38HDR
1,
X^
O
X^
X
43 3/16"
44 9/16"
17 1/16"
18 7/16"
30 1/2"
19 5/8"
35 3/16"
40 1/16"
14 1/2"
8 1/2"
18 7/8"
7/8"
3 7/16"
6 1/2"
284
309
50 1/2" X 20 1/2" X 46 2/10"
38HDR
1,
X^
O
X^
X
43 3/16"
44 9/16"
17 1/16"
18 7/16"
30 1/2"
19 5/8"
35 3/16"
40 1/16"
14 1/2"
8 1/2"
18 7/8"
7/8"
3 7/16"
6 1/2"
294
319
50 1/2" X 20 1/2" X 46 2/10"
UNIT SIZE
MINIMUM
MOUNTING PAD
DIMENSIONS
18,
23" X 42"
30,36,48,
24" X 50"
1 1/2"
FIELD CONTROL SUPPLYWIRE ENTRY7/8" HOLE W/GROMMET
- REQUIRED CLEARANCES: WITH COIL FACING WALL; ALLOW 6" MIN CLEARANCE ON COIL SIDE AND COIL END AND 36" MIN CLEARANCEON COMPRESSOR END AND FAN SIDE. WITH FAN FACING WALL; ALLOW 8" MINCLEARANCE ON FAN SIDE AND COIL END AND 36" MIN CLEARANCEON COMPRESSOR END AND COIL SIDE. WITH MULTI UNIT APPLICATION;ARRANGE UNITS SO DISCHARGE OF ONE DOES NOT ENTER INLET OF ANOTHER. 2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING MODE IS 55
F, MAX. 125
F.
- SERIES DESIGNATION IS THE 13TH POSITION OF THE UNIT MODEL NUMBER. 4. CENTER OF GRAVITY5. ALL DIMENSIONS ARE IN "INCHES" UNLESS NOTED.
FIELD POWER SUPPLY CONN.HOLE SIZES PROVIDED:7/8"-1/2"TRADE1 3/16"-3/4"TRADE1 3/8"-1"TRADE
3/8" LIQUID LINE FEMALE SWEAT CONN.
X = YESO = NO
FEMALE SWEAT CONN.
VAPOR LINE CONN.
M
JUNCTION BOX FORPOWER SUPLLY ANDCONTROL CONNECTIONS 4 3/16"
N J
P
E
F
D
7 1/2"
2 1/2"
11/16"
C
K
N
AIR AIR
Fig. 5 – 38HDR Dimensions -
- English 40QAC/38HDR -- 40QAQ/38QRR
OUTDOOR UNIT DIMENSIONS
4 3/16"
11/16"
J
K
N
P
E
F
D
C
7 1/2"
2 1/2"
UNIT
SERIES
ELECTRICAL
CHARACTERISTICS
A
B
C
D
E^
F^
G
H
J^
K
L^
M
N
P
OPERATINGWEIGHT(lbs)
SHIPPINGWEIGHT(lbs)
SHIPPING
DIMENSIONS (L x W x H)
38QRR
0
X^
O^
O
O
25 1/8"
36 15/16"
14 9/16"
16"
23 7/16"
17 3/16"
17 1/8"
22"
13"
6 5/8"
11 1/4"
5/8"
2 15/16"
6"
167
183
42 9/10" X 18" X 28 1/10"
38QRR
0
X^
O^
O
O
31 1/8"
36 15/16"
14 9/16"
16"
23 7/16"
17 3/16"
23 1/8"
28"
14"
6 3/4"
11 5/8"
5/8"
2 15/16"
6"
176
194
42 9/10" X 18" X 34 1/10"
38QRR
0
X^
O^
O
O
37 3/16"
44 9/16"
17 1/16"
18 7/16"
30 1/2"
19 5/8"
29 3/16"
34 1/16"
13 11/16"
8 1/8"
15 7/8"
3/4"
3 7/16"
6 1/2"
187
210
50 1/2" X 20 1/2" X 40 2/10"
38QRR
0
X^
O^
X^
X^
37 3/16"
44 9/16"
17 1/16"
18 7/16"
30 1/2"
19 5/8"
29 3/16"
34 1/16"
13 11/16"
8 1/8"
15 7/8"
3/4"
3 7/16"
6 1/2"
232
255
50 1/2" X 20 1/2" X 40 2/10"
38QRR
0
X^
O^
X^
X^
43 3/16"
44 9/16"
17 1/16"
18 7/16"
30 1/2"
19 5/8"
35 3/16"
40 1/16"
14 1/2"
8 1/2"
18 7/8"
7/8"
3 7/16"
6 1/2"
278
303
50 1/2" X 20 1/2" X 46 2/10"
38QRR
0
X^
O^
X^
X^
43 3/16"
44 9/16"
17 1/16"
18 7/16"
30 1/2"
19 5/8"
35 3/16"
40 1/16"
14 1/2"
8 1/2"
18 7/8"
7/8"
3 7/16"
6 1/2"
306
331
50 1/2" X 20 1/2" X 46 2/10"
UNIT SIZE
MINIMUM
MOUNTING PAD
DIMENSIONS
18,
23" X 42"
30,36,48,
24" X 50"
- REQUIRED CLEARANCES: WITH COIL FACING WALL; ALLOW 6" MINCLEARANCE ON COIL SIDE AND COIL END AND 36" MIN CLEARANCEON COMPRESSOR END AND FAN SIDE. WITH FAN FACING WALL; ALLOW 8" MINCLEARANCE ON FAN SIDE AND COIL END AND 36" MIN CLEARANCEON COMPRESSOR END AND COIL SIDE. WITH MULTI UNIT APPLICATION;ARRANGE UNITS SO DISCHARGE OF ONE DOES NOT ENTER INLET OF ANOTHER.2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLINGMODE IS 55
F, MAX. 125
F.
- SERIES DESIGNATION IS THE 13TH POSITION OF THEUNIT MODEL NUMBER.4. CENTER OF GRAVITY5. ALL DIMENSIONS ARE IN "INCHES" UNLESS NOTED.
X = YESO = NO
AIR AIR
A
B
3/8" LIQUID LINE MALE FLARE CONN.
FEMALE SWEAT CONN.
VAPOR LINE CONN. M
H
G
L
1"
8" 4 1/2"
1 7/16"
1 1/2"
FIELD CONTROL SUPPLYWIRE ENTRY7/8" HOLE W/GROMMET
FIELD POWER SUPPLY CONN.HOLE SIZES PROVIDED:7/8"-1/2"TRADE1 3/16"-3/4"TRADE1 3/8"-1"TRADE
JUNCTION BOX FORPOWER SUPLLY ANDCONTROL CONNECTIONS
Fig. 7 – 38QRR Dimensions -
- English 40QAC/38HDR -- 40QAQ/38QRR
OUTDOOR UNIT DIMENSIONS CONTINUED
J
K
N
P
E
F
D
C
N
UNIT
SERIES
ELECTRICAL
CHARACTERISTICS
A
B
C
D
E
F^
G
H
J^
K
L^
M
N
P
OPERATINGWEIGHT(KG)
SHIPPING
WEIGHT(KG)
SHIPPING
DIMENSIONS (L x W x H)
38QRR
0
X^
O
O^
O
1090.2 X 457.7 X 714.
38QRR
0
X^
O
O^
O
1090.2 X 457.7 X 866.
38QRR
0
X^
O
O^
O
1282.7 X 520.7 X 1020.
38QRR
0
X^
O
X^
X^
1282.7 X 520.7 X 1020.
38QRR
0
X^
O
X^
X^
1282.7 X 520.7 X 1173.
38QRR
0
X^
O
X^
X^
1282.7 X 520.7 X 1173.
UNIT SIZE
MINIMUM
MOUNTING PAD
DIMENSIONS
18,
584.2 X 1066.
30,36,48,
609.6 X 1270.
208-230-1-
230-1-
208/230-3-
460-3-
X = YESO = NO
- REQUIRED CLEARANCES: WITH COIL FACING WALL; ALLOW 152.4 MINCLEARANCE ON COIL SIDE AND COIL END AND 914.4 MIN CLEARANCEON COMPRESSOR END AND FAN SIDE. WITH FAN FACING WALL; ALLOW 203.2 MINCLEARANCE ON FAN SIDE AND COIL END AND 914.4 MIN CLEARANCEON COMPRESSOR END AND COIL SIDE. WITH MULTI UNIT APPLICATION;ARRANGE UNITS SO DISCHARGE OF ONE DOES NOT ENTER INLET OF ANOTHER.2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLINGMODE IS 12.
C, MAX. 51.
C.
- SERIES DESIGNATION IS THE 13TH POSITION OF THEUNIT MODEL NUMBER.4. CENTER OF GRAVITY5. ALL DIMENSIONS ARE IN "MM" UNLESS NOTED.
AIR AIR
A
B
9.53 LIQUID LINE MALE FLARE CONN.
FEMALE SWEAT CONN.
VAPOR LINE CONN.
M
H
G
L
FIELD CONTROL SUPPLYWIRE ENTRY22.22 HOLE W/GROMMET
FIELD POWER SUPPLY CONN.HOLE SIZES PROVIDED:22.22 - 12.70 TRADE30.16 - 19.05 TRADE34.92 - 25.40 TRADE
JUNCTION BOX FORPOWER SUPLLY ANDCONTROL CONNECTIONS
Fig. 8 – 38QRR Dimensions -
- SI
40QAC/38HDR -- 40QAQ/38QRR
PHYSICAL DATA -- OUTDOOR UNIT 38HDR
Outdoor Unit 38HDR 018 024 030 036 48 60
System Voltage 208/230 ---1 ---60 208/230 ---1 ---60 208/230 ---1 ---
Nominal Capacity (Btuh) 18000 24000 30000 36000 48000 60000 Operating Weight lb(kg) 166 (75.3) 176 (79.8) 250 (113.4) 250 (113.4) 278 (126.4) 306 (139) Refrigerant Type R---410A Metering Device TXV Unit Factory Charge 6.3 (2.9) 6.5 (3.0) 8.7 (4.0) 8.7 (4.0) 12 (5.5) 12 (5.5) System Charge (25 ft line) lb (kg) 7.0 (3.2) 7.8 (3.5) 10.1 (4.6) 8.9 (4.0) 12.2 (5.5) 12.5 (5.7) Additional Charge .7 (.32) 1.3 (.57) 1.4 (.64) .2 (.1) .2 (.1) .5 (.23) Compressor Type Scroll Oil Charge (POE ---oz) 25 25 25 25 42 42 Crankcase Heater --- --- 40 40 40 40 Accumulator Yes Outdoor Fan Rpm/CFM 840/1720 840/1720 840/3900 840/3900 840/3900 840/ Diameter (in) .. No. of Blades 18 … 3 18 … 3 24 … 3 24 … 3 24 … 3 24 … 3 Motor HP 1/8 1/8 1/4 1/4 1/4 1/ Outdoor Coil Face Area (sq. ft) 5.8 7.3 12.1 12.1 14.1 14. No. Rows 2 3 2 2 3 3 Fins per inch 20 20 20 20 20 20 Circuits 2 3 3 6 6 6 High Pressure Switch Cut---In (psig) 420±25 420±25 420±25 420±25 420±25 420± Cut---Out (psig) 650±10 650±10 650±10 650±10 650±10 650± Low Pressure Switch Cut---In (psig) 45±25 45±25 45±25 45±25 45±25 45± Cut---Out (psig) 20±5 20±5 20±5 20±5 20±5 20± Fusible Plug ° F (° C) 210 (99) Refrigerant Lines Connection Type Liquid/Suction --- Sweat Suction/Vapor (in) OD 5/8 3/4 7/8 7/8† Liquid Line (in) OD 3/ Maximum Length* ft (m) 200 (61) Max Lift (Fan Coil Above) ft (m) 65 (20) Max Drop (Fan Coil Below) ft (m) 200 (61) Controls Control Voltage 24 vac External Finish Gray
- Refer to Long Line Application { Valve size connection is 7/8 inch. Recommended line size is 1 ---1/8 inch.
40QAC/38HDR -- 40QAQ/38QRR
PHYSICAL DATA (CONT.) -- OUTDOOR UNIT 38QRR
Outdoor Unit 38QRR 018 024 030 036 048 060
System Voltage 208/230 ---1 ---60 208/230 ---1 ---60 208/230 ---1 ---
Refrigerant Type R---410A Unit Factory Charge 6.8 (3.1) 7.0 (3.2) 12.0 (5.4) 12.5 (5.7) 12.2 (5.5) 12.8 (5.8) System Charge (25 ft line) 7.5 (3.4) 7.8 (3.5) 12.0 (5.4) 13.0 (5.9) 12.2 (5.5) 12.8 (5.8) Additional Charge .7 (.32) .8 (.36) 0.0 .5 (.23) 0.0 0. Heating Metering Device Accurator at Outdoor Unit Cooling Metering Device Accurator at Indoor Unit TXV Cooling Piston 49 55 65 70 80 --- Heating Piston 40 43 55 63 73 80 Compressor Type Scroll Oil Charge (POE ---oz) 25 25 25 25 42 42 Crankcase Heater --- --- 40 40 40 40 Outdoor Fan Rpm/CFM 840/1720 840/1720 850/3900 850/3900 850/3900 850/ Diameter (in) .. No. of Blades 18 … 3 18 … 3 24 … 3 24 … 3 24 … 3 24 … 3 Motor HP 1/8 1/8 1/4 1/4 1/4 1/ Outdoor Coil Face Area (sq. ft) 5.8 7.3 12.1 12.1 14.1 14. No. Rows 3 3 2 3 3 3 Fins per inch 20 20 20 20 20 20 Circuits 3 3 6 6 6 6 High Pressure Switch Cut---In (psig) 420±25 420±25 420±25 420±25 420±25 420± Cut---Out (psig) 650±10 650±10 650±10 650±10 650±10 650± Low Pressure Switch Cut---In (psig) 45±25 45±25 45±25 45±25 45±25 45± Cut---Out (psig) 20±5 20±5 20±5 20±5 20±5 20± Fusible Plug ° F (° C) 210 (99) Refrigerant Lines Connection Type Liquid Line --- Flare/Suction --- Sweat Suction/Vapor (in) OD 5/8 3/ Liquid Line (in) OD 3/ Maximum Length* ft (m) 200 (61) Max Lift (Fan Coil Above) ft (m) 65 (20) Max Drop (Fan Coil Below) ft (m) 200 (61) Controls Control Voltage 24 vac External Finish Gray
- Refer to Long Line Application
40QAC/38HDR -- 40QAQ/38QRR
PERFORMANCE DATA
COOLING CAPACITIES
38HDR018 / 40QAC024*
Temp ° F(° C) Air Entering Condenser (Edb)
Air Entering Evaporator --- Cfm/BF 320/0.02 400/0.03 500/0. Air Entering Evaporator --- Ewb ° F (° C) 57 (13.9)
TCG 17.2 18.7 20.1 21.5 17.7 19.1 20.5 21.8 18.1 19.5 20.8 22.
SHG 16.8 15.0 12.9 10.7 17.2 15.7 13.3 10.9 18.1 16.4 13.8 11.
TC 17.0 18.5 19.9 21.3 17.4 18.8 20.2 21.6 17.8 19.3 20.6 21.
kW 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.95 0.94 0. CMP 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.76 0.75 0.76 0.75 0. LDB 46.3 50.2 54.9 59.7 49.0 52.1 56.8 61.4 51.3 54.2 58.7 63. LWB 41.6 46.9 52.5 58.2 43.0 48.4 54.0 59.7 44.5 49.9 55.4 61.
TCG 16.3 18.2 19.6 21.1 17.0 18.6 20.0 21.4 17.7 18.9 20.3 21.
SHG 16.3 14.9 12.8 10.6 17.0 15.5 13.2 10.8 17.7 16.4 13.7 11.
TC 16.1 17.9 19.4 20.8 16.8 18.3 19.7 21.1 17.4 18.7 20.1 21.
kW 1.06 1.05 1.06 1.06 1.06 1.06 1.06 1.06 1.06 1.06 1.06 1. CMP 0.87 0.87 0.87 0.87 0.87 0.87 0.87 0.87 0.87 0.87 0.87 0. LDB 47.2 50.5 55.1 59.8 49.4 52.3 56.8 61.5 51.9 54.2 58.7 63. LWB 42.5 47.4 52.9 58.6 43.6 48.8 54.3 60.0 44.8 50.3 55.8 61.
TCG 15.6 17.4 19.0 20.5 16.4 17.8 19.4 20.8 17.1 18.2 19.7 21.
SHG 14.9 14.6 12.6 10.4 16.4 15.3 13.1 10.7 17.1 16.2 13.7 11.
TC 15.4 17.2 18.8 20.3 16.2 17.5 19.1 20.6 16.9 17.9 19.5 20.
kW 1.17 1.19 1.19 1.19 1.18 1.18 1.19 1.19 1.18 1.19 1.19 1. CMP 0.99 1.00 1.00 1.00 0.99 1.00 1.00 1.01 1.00 1.00 1.00 1. LDB 50.3 51.1 55.4 60.1 50.4 52.7 57.0 61.7 52.8 54.4 58.7 63. LWB 43.3 48.1 53.4 59.0 44.1 49.4 54.8 60.3 45.3 50.8 56.1 61.
TCG 14.8 16.5 18.2 19.8 15.6 16.9 18.6 20.1 16.4 17.2 18.9 20.
SHG 14.8 13.9 12.2 10.2 15.6 14.8 12.9 10.5 16.4 15.8 13.6 10.
TC 14.5 16.2 18.0 19.6 15.4 16.6 18.3 19.9 16.1 17.0 18.6 20.
kW 1.30 1.32 1.33 1.33 1.31 1.32 1.33 1.33 1.32 1.33 1.33 1. CMP 1.12 1.13 1.15 1.15 1.13 1.14 1.15 1.15 1.14 1.14 1.15 1. LDB 50.4 52.4 56.1 60.5 52.0 53.6 57.4 62.0 53.9 55.0 59.0 63. LWB 44.1 49.0 54.1 59.5 44.9 50.2 55.3 60.7 45.8 51.4 56.6 62.
TCG 14.2 15.4 17.2 19.0 14.7 15.7 17.6 19.3 15.5 16.1 18.3 19.
SHG 14.2 13.3 11.8 9.8 14.7 14.2 12.5 10.2 15.5 15.2 13.5 10.
TC 13.9 15.2 17.0 18.7 14.5 15.5 17.3 19.0 15.2 15.9 18.0 19.
kW 1.53 1.54 1.56 1.57 1.53 1.54 1.57 1.57 1.54 1.55 1.57 1. CMP 1.34 1.35 1.37 1.38 1.35 1.36 1.38 1.39 1.36 1.36 1.38 1. LDB 51.6 53.6 57.0 61.3 53.6 54.7 58.1 62.5 55.4 56.0 59.5 63. LWB 44.7 49.9 54.9 60.1 45.6 51.1 56.0 61.3 46.5 52.2 57.2 62.
TCG 13.3 14.2 16.0 17.9 13.9 14.5 16.3 18.2 14.5 15.1 16.6 18.
SHG 13.3 12.7 11.2 9.4 13.9 13.5 11.8 9.8 14.5 13.4 12.6 10.
TC 13.1 13.9 15.7 17.6 13.6 14.2 16.0 17.9 14.3 14.9 16.4 18.
kW 1.60 1.61 1.63 1.66 1.61 1.61 1.64 1.66 1.62 1.62 1.64 1. CMP 1.42 1.43 1.45 1.47 1.42 1.43 1.45 1.47 1.43 1.43 1.46 1. LDB 53.4 54.8 58.2 62.0 55.1 56.0 59.3 63.2 57.0 58.9 60.4 64. LWB 45.5 51.0 55.9 60.9 46.4 52.0 56.9 62.0 47.2 52.9 58.0 63.
TCG 12.3 12.9 14.6 16.5 12.8 13.3 14.9 16.8 13.4 13.8 15.2 17.
SHG 12.3 11.6 10.4 8.9 12.8 12.1 11.1 9.3 13.4 12.5 11.9 9.
TC 12.1 12.7 14.4 16.3 12.6 13.1 14.7 16.6 13.2 13.5 14.9 16.
kW 1.77 1.77 1.79 1.83 1.78 1.77 1.80 1.83 1.78 1.79 1.80 1. CMP 1.58 1.58 1.61 1.64 1.59 1.59 1.61 1.65 1.60 1.60 1.62 1. LDB 55.4 57.0 59.7 63.1 57.0 58.5 60.6 64.0 58.7 60.4 61.5 65. LWB 46.5 52.1 56.9 61.8 47.3 52.9 57.9 62.8 48.1 53.8 58.9 63.
TCG 11.2 11.6 13.1 14.9 11.7 11.8 13.3 15.2 12.3 12.3 13.6 15.
SHG 11.2 10.8 9.8 8.2 11.7 11.8 10.5 8.7 12.3 12.3 11.2 9.
TC 11.0 11.3 12.9 14.7 11.5 11.5 13.1 14.9 12.0 12.0 13.3 15.
kW 1.96 1.94 1.97 2.01 1.95 1.95 1.97 2.01 1.96 1.96 1.98 2. CMP 1.77 1.76 1.78 1.82 1.77 1.76 1.79 1.83 1.78 1.77 1.79 1. LDB 57.7 58.6 60.9 64.4 59.0 59.1 61.7 65.2 60.6 60.7 62.6 66. LWB 47.6 53.2 58.1 62.9 48.2 53.9 58.9 63.8 48.9 54.7 59.8 64. Rating Condition. Not recommended for long--- term operation
BF --- Bypass Factor CMP --- Compressor Edb --- Entering Dry Bulb Ewb --- Entering Wet Bulb kW --- Total Power LDB --- Leaving Dry Bulb LWB --- Leaving Wet Bulb SHG --- Gross Sensible Capacity (1000 Btuh) TC --- Total Net Cooling Capacity (1000 Btuh) TCG --- Gross Cooling Capacity (1000 Btuh)
- The 40QAC024 unit must be field configured to an 018 size unit by changing the motor speed fan tap plug. Refer to Installation Instructions for more details. NOTES :
- Direct interpolation is permissible. Do not extrapolate.
- The SHG is based on 80_F (26.7_C) edb temperature of air entering indoor coil.
Below 80_F (26.7_C) edb, subtract (corr factor x cfm) from SHG. Above 80_F (26.7_C) edb, add (corr factor x cfm) to SHG. Correction Factor = 1.10 x (1 --- BF) x (edb --- 80).
40QAC/38HDR -- 40QAQ/38QRR
PERFORMANCE DATA (CONT.)
COOLING CAPACITIES
38HDR024 / 40QAC
Temp ° F(° C) Air Entering Condenser (Edb)
Air Entering Evaporator --- Cfm/BF 400/0.03 500/0.03 600/0. Air Entering Evaporator --- Ewb ° F (° C) 57 (13.9)
TCG 22.1 24.2 25.3 26.2 22.3 24.3 25.4 26.2 22.8 24.7 25.5 26.
SHG 21.1 19.1 16.0 12.9 21.5 19.3 16.1 13.0 22.8 20.0 16.3 13.
TC 21.8 23.8 25.0 25.8 21.9 24.0 25.0 25.9 22.5 24.4 25.2 26.
kW 1.19 1.19 1.20 1.20 1.19 1.20 1.20 1.20 1.19 1.20 1.20 1. CMP 1.00 1.01 1.02 1.02 1.00 1.01 1.02 1.02 1.00 1.02 1.02 1. LDB 44.3 48.0 53.7 59.3 45.1 49.1 54.6 60.0 46.0 50.6 56.4 61. LWB 40.1 45.4 51.5 57.8 40.8 46.0 52.1 58.4 41.9 47.2 53.5 59.
TCG 21.6 23.6 25.5 26.4 21.8 23.8 25.5 26.4 22.2 24.3 25.7 26.
SHG 20.9 19.0 16.3 13.2 21.3 19.4 16.4 13.2 22.1 20.1 16.8 13.
TC 21.2 23.3 25.1 26.1 21.4 23.5 25.2 26.1 21.8 24.0 25.4 26.
kW 1.35 1.35 1.36 1.37 1.35 1.35 1.36 1.37 1.35 1.36 1.36 1. CMP 1.16 1.17 1.17 1.18 1.16 1.17 1.18 1.18 1.16 1.17 1.18 1. LDB 44.6 48.3 53.2 58.8 45.3 48.8 54.0 59.5 47.1 50.3 55.6 61. LWB 40.6 45.8 51.4 57.7 41.2 46.3 52.0 58.3 42.4 47.5 53.3 59.
TCG 20.9 22.9 25.0 26.4 21.1 23.1 25.1 26.5 21.8 23.5 25.5 26.
SHG 20.2 18.7 16.1 13.2 20.4 19.0 16.4 13.4 21.5 20.0 17.0 13.
TC 20.6 22.5 24.6 26.1 20.8 22.7 24.8 26.2 21.5 23.2 25.2 26.
kW 1.51 1.53 1.54 1.55 1.52 1.53 1.54 1.55 1.53 1.53 1.54 1. CMP 1.33 1.35 1.35 1.36 1.33 1.35 1.35 1.36 1.34 1.35 1.35 1. LDB 45.9 48.8 53.5 58.7 46.8 49.4 54.0 59.3 47.9 50.6 55.4 60. LWB 41.2 46.4 51.7 57.7 41.7 46.9 52.3 58.2 42.7 48.1 53.5 59.
TCG 20.0 21.9 24.1 26.0 20.2 22.1 24.3 26.2 21.0 22.5 24.7 26.
SHG 20.0 18.3 15.8 13.1 20.2 18.6 16.1 13.2 21.0 19.5 16.7 13.
TC 19.7 21.6 23.8 25.7 19.9 21.8 24.0 25.8 20.6 22.2 24.3 26.
kW 1.69 1.72 1.73 1.74 1.70 1.73 1.74 1.75 1.71 1.73 1.74 1. CMP 1.51 1.54 1.55 1.56 1.51 1.54 1.55 1.56 1.53 1.54 1.55 1. LDB 46.3 49.5 54.0 59.0 47.2 50.0 54.5 59.5 48.8 51.2 55.7 60. LWB 42.0 47.1 52.3 57.9 42.5 47.6 52.9 58.5 43.3 48.7 54.0 59.
TCG 19.2 20.8 23.1 25.2 19.5 21.0 23.2 25.3 20.1 21.4 23.3 25.
SHG 19.2 17.7 15.4 12.8 19.5 18.0 15.7 12.9 20.1 18.9 16.1 13.
TC 18.9 20.5 22.7 24.8 19.1 20.7 22.9 25.0 19.7 21.0 23.0 25.
kW 1.89 1.92 1.95 1.96 1.89 1.92 1.95 1.96 1.91 1.93 2.00 2. CMP 1.70 1.73 1.76 1.77 1.71 1.73 1.76 1.77 1.72 1.74 1.82 1. LDB 47.6 50.5 54.7 59.4 48.4 51.0 55.2 60.0 50.1 52.1 56.3 61. LWB 42.7 48.0 53.1 58.5 43.1 48.5 53.6 59.0 44.0 49.5 54.6 60.
TCG 18.2 19.5 21.8 24.1 18.5 19.7 22.0 24.2 19.1 20.1 22.3 24.
SHG 18.2 17.0 14.8 12.4 18.5 17.4 15.1 12.6 19.1 18.2 15.8 13.
TC 17.9 19.2 21.5 23.7 18.2 19.4 21.6 23.9 18.8 19.7 22.0 24.
kW 2.10 2.12 2.17 2.19 2.10 2.12 2.17 2.19 2.11 2.13 2.18 2. CMP 1.91 1.93 1.98 2.01 1.92 1.94 1.99 2.01 1.93 1.95 2.00 2. LDB 49.3 51.6 55.7 60.1 50.0 52.0 56.1 60.6 51.6 53.1 57.0 61. LWB 43.6 49.0 54.0 59.2 43.9 49.4 54.4 59.6 44.7 50.4 55.4 60.
TCG 17.1 18.1 20.4 22.7 17.4 18.3 20.5 22.8 18.0 19.0 20.9 23.
SHG 17.1 16.3 14.2 11.9 17.4 16.7 14.4 12.1 18.0 17.0 15.1 12.
TC 16.8 17.8 20.0 22.4 17.1 17.9 20.2 22.5 17.7 18.6 20.5 22.
kW 2.32 2.34 2.39 2.44 2.33 2.34 2.40 2.44 2.34 2.35 2.41 2. CMP 2.13 2.15 2.21 2.26 2.14 2.16 2.21 2.26 2.15 2.16 2.22 2. LDB 51.1 52.8 56.7 60.9 51.8 53.2 57.2 61.4 53.2 55.0 58.1 62. LWB 44.5 50.1 55.0 60.0 44.8 50.5 55.4 60.4 45.5 51.1 56.2 61.
TCG 15.9 16.8 18.7 21.1 16.2 17.1 18.9 21.3 16.8 17.4 19.3 21.
SHG 15.9 15.0 13.4 11.3 16.2 15.2 13.7 11.5 16.8 16.0 14.4 11.
TC 15.6 16.5 18.3 20.8 15.9 16.8 18.6 20.9 16.5 17.1 18.9 21.
kW 2.56 2.56 2.62 2.71 2.56 2.57 2.63 2.71 2.58 2.59 2.64 2. CMP 2.37 2.38 2.44 2.52 2.38 2.39 2.44 2.52 2.39 2.40 2.46 2. LDB 53.2 55.0 58.0 61.9 53.7 55.6 58.3 62.2 55.1 56.5 59.1 63. LWB 45.4 51.1 56.1 60.9 45.7 51.3 56.4 61.3 46.4 52.1 57.2 62. Rating Condition. Not recommended for long--- term operation
BF --- Bypass Factor CMP --- Compressor Edb --- Entering Dry Bulb
Ewb --- Entering Wet Bulb kW --- Total Power
LDB --- Leaving Dry Bulb LWB --- Leaving Wet Bulb
SHG --- Gross Sensible Capacity (1000 Btuh) TC --- Total Net Cooling Capacity (1000 Btuh) TCG --- Gross Cooling Capacity (1000 Btuh)
NOTES :
- Direct interpolation is permissible. Do not extrapolate.
- The SHG is based on 80_F (26.7_C) edb temperature of air entering indoor coil.
Below 80_F (26.7_C) edb, subtract (corr factor x cfm) from SHG. Above 80_F (26.7_C) edb, add (corr factor x cfm) to SHG. Correction Factor = 1.10 x (1 --- BF) x (edb --- 80).
40QAC/38HDR -- 40QAQ/38QRR
PERFORMANCE DATA (CONT.)
COOLING CAPACITIES
38HDR036 / 40QAC
Temp ° F(° C) Air Entering Condenser (Edb)
Air Entering Evaporator --- Cfm/BF 640/0.02 740/0.02 840/0. Air Entering Evaporator --- Ewb ° F (° C) 57 (13.9)
TCG 31.6 34.2 35.6 36.5 32.3 34.7 35.7 36.6 32.9 35.0 35.9 36.
SHG 30.5 27.2 22.6 18.1 32.3 28.2 22.9 18.2 32.9 29.0 23.3 18.
TC 30.9 33.5 34.9 35.7 31.6 34.0 35.0 35.8 32.2 34.3 35.1 35.
kW 1.74 1.74 1.75 1.74 1.74 1.75 1.75 1.74 1.73 1.75 1.75 1. CMP 1.39 1.39 1.40 1.39 1.39 1.40 1.40 1.39 1.38 1.40 1.40 1. LDB 43.8 48.1 54.0 59.7 45.2 50.0 56.1 61.5 47.6 51.8 57.8 62. LWB 40.0 45.4 51.6 58.1 41.5 47.0 53.3 59.6 42.7 48.3 54.6 60.
TCG 30.8 33.6 36.0 37.1 31.5 34.2 36.3 37.3 32.4 34.7 36.5 37.
SHG 30.0 27.1 23.1 18.6 31.4 28.4 23.8 18.9 32.4 29.4 24.4 19.
TC 30.0 32.8 35.2 36.4 30.8 33.5 35.6 36.5 31.7 34.0 35.8 36.
kW 1.95 1.94 1.95 1.95 1.95 1.94 1.95 1.95 1.95 1.95 1.95 1. CMP 1.60 1.59 1.60 1.60 1.60 1.59 1.60 1.60 1.60 1.60 1.60 1. LDB 44.3 48.1 53.3 59.1 46.2 49.8 55.1 60.8 48.1 51.4 56.7 62. LWB 40.6 45.8 51.4 57.8 41.9 47.2 53.0 59.3 43.0 48.4 54.3 60.
TCG 30.2 32.6 35.3 37.0 31.2 33.2 35.8 37.2 31.7 33.7 36.2 37.
SHG 29.0 26.7 22.9 18.7 29.7 28.1 23.8 19.0 31.7 29.2 24.5 19.
TC 29.4 31.8 34.5 36.3 30.5 32.4 35.0 36.4 31.0 33.0 35.4 36.
kW 2.18 2.17 2.17 2.18 2.18 2.18 2.17 2.18 2.18 2.17 2.18 2. CMP 1.83 1.82 1.82 1.83 1.83 1.83 1.82 1.83 1.83 1.82 1.83 1. LDB 45.6 48.6 53.5 59.1 48.1 50.1 55.2 60.7 48.8 51.5 56.6 62. LWB 40.9 46.4 51.8 57.9 42.1 47.7 53.2 59.4 43.3 48.9 54.4 60.
TCG 28.8 31.3 34.3 36.7 29.6 31.9 34.8 36.9 30.7 32.4 35.2 37.
SHG 28.2 26.0 22.7 18.5 29.6 27.4 23.6 19.0 30.7 28.8 24.4 19.
TC 28.0 30.5 33.5 35.9 28.9 31.2 34.1 36.2 30.0 31.7 34.5 36.
kW 2.40 2.42 2.43 2.43 2.42 2.43 2.43 2.44 2.43 2.43 2.43 2. CMP 2.05 2.07 2.08 2.08 2.07 2.08 2.08 2.09 2.08 2.08 2.08 2. LDB 46.5 49.5 53.9 59.2 48.1 50.8 55.3 60.7 49.8 52.0 56.7 61. LWB 41.8 47.1 52.3 58.1 43.0 48.4 53.7 59.5 43.8 49.5 54.8 60.
TCG 27.3 29.7 32.9 35.7 28.3 30.3 33.4 36.2 29.3 30.8 33.7 36.
SHG 27.3 25.1 22.0 18.3 28.3 26.5 23.0 18.8 29.3 27.8 23.9 19.
TC 26.6 28.9 32.1 35.0 27.6 29.6 32.7 35.4 28.5 30.1 33.0 35.
kW 2.84 2.85 2.89 2.89 2.85 2.86 2.89 2.90 2.86 2.87 2.89 2. CMP 2.49 2.50 2.54 2.54 2.50 2.51 2.54 2.55 2.51 2.52 2.54 2. LDB 47.6 50.6 54.6 59.5 49.6 51.8 55.9 60.9 51.3 53.0 57.0 62. LWB 42.7 48.0 53.0 58.5 43.7 49.2 54.3 59.8 44.5 50.2 55.3 60.
TCG 25.9 27.8 31.1 34.3 26.9 28.4 31.7 34.8 27.8 28.9 32.2 35.
SHG 25.9 24.1 21.1 17.8 26.9 25.5 22.2 18.4 27.8 26.8 23.3 18.
TC 25.1 27.0 30.3 33.6 26.2 27.7 31.0 34.1 27.0 28.2 31.4 34.
kW 2.94 2.95 2.99 3.02 2.95 2.96 3.01 3.02 2.96 2.97 3.02 3. CMP 2.59 2.60 2.64 2.67 2.60 2.61 2.66 2.67 2.61 2.62 2.67 2. LDB 49.4 51.7 55.7 60.1 51.1 52.9 56.8 61.3 52.8 54.0 57.7 62. LWB 43.6 49.0 53.9 59.1 44.5 50.1 55.0 60.3 45.2 51.0 56.0 61.
TCG 24.4 25.7 29.0 32.5 25.3 26.3 29.6 33.0 26.2 27.4 29.9 33.
SHG 24.4 23.3 20.1 17.1 25.3 24.5 21.2 17.7 26.2 24.6 22.1 18.
TC 23.6 25.0 28.2 31.7 24.6 25.5 28.8 32.2 25.4 26.6 29.2 32.
kW 3.24 3.25 3.30 3.36 3.25 3.26 3.31 3.36 3.27 3.26 3.31 3. CMP 2.89 2.90 2.95 3.01 2.90 2.91 2.96 3.01 2.92 2.91 2.96 3. LDB 51.2 52.8 56.9 60.9 52.9 54.0 57.9 62.0 54.4 56.1 58.9 62. LWB 44.5 50.1 54.9 59.9 45.3 51.1 56.0 61.0 46.0 51.7 56.9 61.
TCG 22.8 23.9 26.6 30.2 23.6 24.8 27.1 30.7 24.4 25.2 27.6 31.
SHG 22.8 21.5 19.0 16.2 23.6 22.3 20.1 16.9 24.4 23.4 21.1 17.
TC 22.0 23.1 25.8 29.5 22.9 24.0 26.4 30.0 23.7 24.4 26.8 30.
kW 3.57 3.56 3.62 3.71 3.59 3.58 3.64 3.72 3.60 3.59 3.65 3. CMP 3.22 3.21 3.27 3.36 3.24 3.23 3.29 3.37 3.25 3.24 3.30 3. LDB 53.2 55.0 58.2 61.9 54.8 56.4 59.0 62.8 56.2 57.4 59.8 63. LWB 45.4 51.1 56.1 60.9 46.2 51.8 57.0 61.9 46.9 52.6 57.8 62. Rating Condition. Not recommended for long--- term operation
BF --- Bypass Factor CMP --- Compressor Edb --- Entering Dry Bulb
Ewb --- Entering Wet Bulb kW --- Total Power
LDB --- Leaving Dry Bulb LWB --- Leaving Wet Bulb
SHG --- Gross Sensible Capacity (1000 Btuh) TC --- Total Net Cooling Capacity (1000 Btuh) TCG --- Gross Cooling Capacity (1000 Btuh)
NOTES :
- Direct interpolation is permissible. Do not extrapolate.
- The SHG is based on 80_F (26.7_C) edb temperature of air entering indoor coil.
Below 80_F (26.7_C) edb, subtract (corr factor x cfm) from SHG. Above 80_F (26.7_C) edb, add (corr factor x cfm) to SHG. Correction Factor = 1.10 x (1 --- BF) x (edb --- 80).
40QAC/38HDR -- 40QAQ/38QRR
PERFORMANCE DATA (CONT.)
COOLING CAPACITIES
38HDR048 / 40QAC
Temp ° F(° C) Air Entering Condenser (Edb)
Air Entering Evaporator --- Cfm/BF 1100/0.05 1160/0.05 1200/0. Air Entering Evaporator --- Ewb ° F (° C) 57 (13.9)
TCG 44.2 45.6 47.0 48.2 44.6 45.9 47.3 48.5 44.9 46.1 47.5 48.
SHG 44.2 36.9 30.7 25.4 44.6 37.5 31.1 25.6 44.9 38.0 31.3 25.
TC 43.0 44.5 45.9 47.1 43.4 44.8 46.2 47.3 43.7 45.0 46.3 47.
kW 2.42 2.42 2.42 2.42 2.42 2.42 2.42 2.42 2.42 2.42 2.42 2. CMP 2.07 2.07 2.07 2.07 2.07 2.07 2.07 2.07 2.07 2.07 2.07 2. LDB 42.5 49.1 54.8 59.7 44.7 50.7 56.2 60.9 46.0 51.7 57.1 61. LWB 40.1 46.4 52.7 59.0 41.2 47.5 53.7 60.0 41.9 48.1 54.3 60.
TCG 44.8 46.4 48.1 49.6 45.4 46.8 48.4 49.9 45.8 47.0 48.6 50.
SHG 44.8 38.7 31.9 26.1 45.4 39.6 32.4 26.3 45.8 40.1 32.7 26.
TC 43.7 45.3 47.0 48.5 44.3 45.7 47.3 48.7 44.6 45.9 47.5 48.
kW 2.74 2.75 2.75 2.76 2.74 2.75 2.75 2.76 2.74 2.75 2.75 2. CMP 2.39 2.40 2.40 2.41 2.39 2.40 2.40 2.41 2.39 2.40 2.40 2. LDB 41.9 47.5 53.8 59.1 44.0 49.0 55.2 60.3 45.3 50.0 56.0 61. LWB 39.8 46.0 52.3 58.6 40.9 47.1 53.3 59.6 41.6 47.8 54.0 60.
TCG 44.5 46.2 48.4 50.3 45.3 46.6 48.7 50.6 46.0 46.9 49.0 50.
SHG 44.5 39.6 32.6 26.5 45.3 40.6 33.3 26.8 46.0 41.3 33.7 27.
TC 43.4 45.0 47.2 49.2 44.1 45.5 47.6 49.4 44.9 45.7 47.8 49.
kW 3.08 3.10 3.12 3.12 3.09 3.10 3.12 3.12 3.09 3.11 3.12 3. CMP 2.73 2.75 2.77 2.77 2.74 2.75 2.77 2.77 2.74 2.76 2.77 2. LDB 42.2 46.7 53.1 58.7 44.2 48.2 54.4 59.9 45.1 49.0 55.2 60. LWB 39.9 46.1 52.2 58.4 41.0 47.2 53.2 59.4 41.5 47.9 53.8 59.
TCG 43.2 45.4 48.0 50.1 44.3 46.0 48.4 50.5 45.0 46.2 48.6 50.
SHG 43.2 39.8 33.0 26.6 44.3 41.2 33.8 27.0 45.0 42.1 34.3 27.
TC 42.1 44.3 46.8 49.0 43.1 44.8 47.2 49.3 43.9 45.0 47.4 49.
kW 3.47 3.48 3.51 3.53 3.48 3.49 3.51 3.53 3.48 3.49 3.52 3. CMP 3.12 3.13 3.16 3.18 3.13 3.14 3.16 3.18 3.13 3.14 3.17 3. LDB 43.3 46.5 52.8 58.6 44.9 47.7 54.0 59.8 45.9 48.4 54.8 60. LWB 40.5 46.4 52.3 58.4 41.4 47.4 53.3 59.4 41.9 48.1 54.0 60.
TCG 41.3 43.3 46.4 49.7 42.4 44.1 46.8 50.0 43.2 44.5 47.1 50.
SHG 41.3 38.9 32.7 26.6 42.4 40.7 33.5 27.1 43.2 41.7 34.2 27.
TC 40.1 42.2 45.3 48.5 41.3 43.0 45.6 48.9 42.1 43.4 46.0 49.
kW 3.84 3.89 3.99 4.03 3.87 3.90 3.99 4.03 3.89 3.90 4.00 4. CMP 3.49 3.54 3.64 3.68 3.52 3.55 3.64 3.68 3.54 3.55 3.65 3. LDB 45.0 47.3 52.6 58.6 46.5 48.1 53.7 59.7 47.3 48.7 54.4 60. LWB 41.4 47.3 52.6 58.6 42.1 48.1 53.6 59.5 42.6 48.7 54.2 60.
TCG 39.1 40.6 45.3 48.7 40.3 41.2 45.8 49.1 41.0 41.6 46.1 49.
SHG 39.1 37.7 32.4 26.3 40.3 39.3 33.5 27.0 41.0 40.4 34.3 27.
TC 38.0 39.5 44.1 47.6 39.2 40.1 44.6 47.9 39.9 40.5 44.9 48.
kW 4.24 4.27 4.38 4.44 4.26 4.29 4.39 4.44 4.29 4.30 4.40 4. CMP 3.89 3.92 4.03 4.09 3.91 3.94 4.04 4.09 3.94 3.95 4.05 4. LDB 46.9 48.3 53.3 58.9 48.2 49.2 54.2 59.8 49.0 49.7 54.7 60. LWB 42.4 48.3 53.3 58.9 43.0 49.2 54.2 59.8 43.4 49.7 54.7 60.
TCG 36.6 37.3 42.1 46.8 37.8 38.0 42.6 47.4 38.6 38.6 43.0 47.
SHG 36.6 36.2 31.0 25.6 37.8 37.8 32.2 26.3 38.6 38.6 33.0 26.
TC 35.5 36.1 40.9 45.7 36.7 36.9 41.5 46.2 37.4 37.5 41.8 46.
kW 4.67 4.68 4.82 4.92 4.70 4.70 4.84 4.93 4.72 4.72 4.85 4. CMP 4.32 4.33 4.47 4.57 4.35 4.35 4.49 4.58 4.37 4.37 4.50 4. LDB 49.1 49.6 54.4 59.5 50.2 50.4 55.2 60.3 50.9 51.0 55.7 60. LWB 43.4 49.6 54.4 59.5 44.0 50.3 55.2 60.3 44.4 50.7 55.7 60.
TCG 34.0 34.1 38.6 43.4 35.1 35.1 39.3 44.1 35.8 35.8 39.7 44.
SHG 34.0 34.1 29.6 24.3 35.1 35.1 30.9 25.1 35.8 35.8 31.7 25.
TC 32.8 32.9 37.5 42.3 33.9 34.0 38.1 43.0 34.6 34.7 38.6 43.
kW 5.13 5.13 5.25 5.42 5.16 5.16 5.27 5.44 5.18 5.18 5.29 5. CMP 4.78 4.78 4.90 5.07 4.81 4.81 4.92 5.09 4.83 4.83 4.94 5. LDB 51.4 51.4 55.6 60.5 52.4 52.5 56.3 61.2 53.1 53.2 56.7 61. LWB 44.6 50.9 55.6 60.5 45.1 51.3 56.3 61.2 45.4 51.6 56.7 61. Rating Condition. Not recommended for long--- term operation
BF --- Bypass Factor CMP --- Compressor Edb --- Entering Dry Bulb Ewb --- Entering Wet Bulb kW --- Total Power LDB --- Leaving Dry Bulb LWB --- Leaving Wet Bulb SHG --- Gross Sensible Capacity (1000 Btuh) TC --- Total Net Cooling Capacity (1000 Btuh) TCG --- Gross Cooling Capacity (1000 Btuh)
NOTES :
- Direct interpolation is permissible. Do not extrapolate.
- The SHG is based on 80_F (26.67_C) edb temperature of air entering indoor coil. Below 80_F (26.67_C) edb, subtract (corr factor x cfm) from SHG. Above 80_F (26.67_C) edb, add (corr factor x cfm) to SHG. Correction Factor = 1.10 x (1 --- BF) x (edb --- 80).
40QAC/38HDR -- 40QAQ/38QRR
