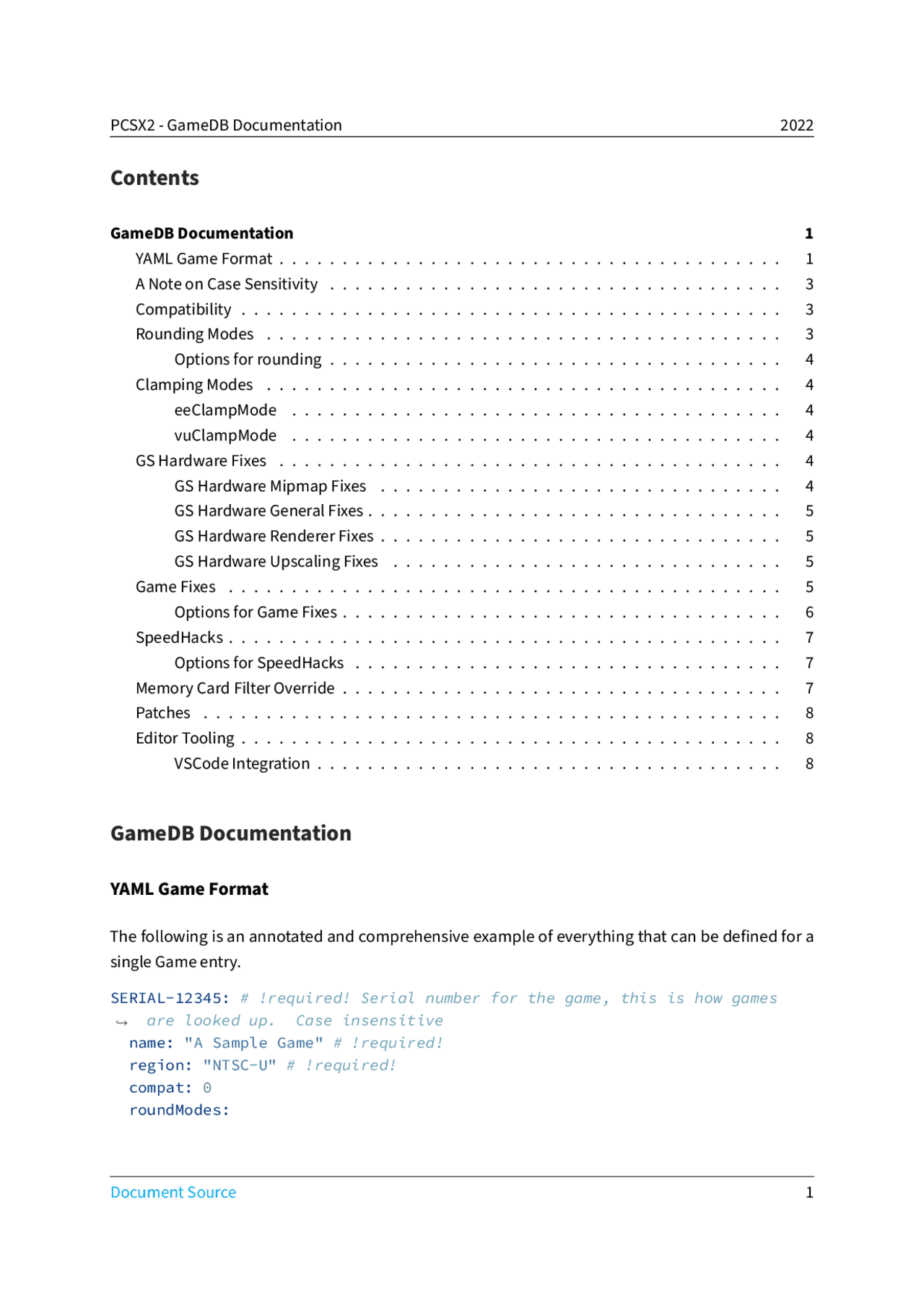

Contents
GameDB Documentation 1 YAML Game Format........................................ 1 A Note on Case Sensitivity.................................... 3 Compatibility........................................... 3 Rounding Modes......................................... 3 Options for rounding.................................... 4 Clamping Modes......................................... 4 eeClampMode....................................... 4 vuClampMode....................................... 4 GS Hardware Fixes........................................ 4 GS Hardware Mipmap Fixes................................ 4 GS Hardware General Fixes................................. 5 GS Hardware Renderer Fixes................................ 5 GS Hardware Upscaling Fixes............................... 5 Game Fixes............................................ 5 Options for Game Fixes................................... 6 SpeedHacks............................................ 7 Options for SpeedHacks.................................. 7 Memory Card Filter Override................................... 7 Patches.............................................. 8 Editor Tooling........................................... 8 VSCode Integration..................................... 8
GameDB Documentation
YAML Game Format
The following is an annotated and comprehensive example of everything that can be defined for a single Game entry.
SERIAL-12345: # !required! Serial number for the game, this is how games ↪ → are looked up. Case insensitive name: "A Sample Game" # !required! region: "NTSC-U" # !required! compat: 0 roundModes:
eeRoundMode: 0 vuRoundMode: 3 clampModes: eeClampMode: 0 vuClampMode: 3
If a GameFix is included in the list, it will be enabled.
If you'd like to temporarily disable it, either comment out the line,
↪ → or remove it! gameFixes:
- VuAddSubHack - FpuMulHack - FpuNegDivHack - XGKickHack - EETimingHack - SkipMPEGHack - OPHFlagHack - DMABusyHack - VIFFIFOHack - VIF1StallHack - GIFFIFOHack - GoemonTlbHack - IbitHack - VUSyncHack - VUOverflowHack - SoftwareRendererFMVHack
The value of the GS Fixes is assumed to be an integer
gsHWFixes: mipmap: 1 preloadFrameData: 1
The value of the speedhacks is assumed to be an integer,
but at the time of writing speedhacks are effectively booleans (0/1)
speedHacks: mvuFlagSpeedHack: 0 InstantVU1SpeedHack: 0 memcardFilters: - "SERIAL-123" - "SERIAL-456"
You can define multiple patches, but they are identified by the CRC.
patches: default: # Default CRC! content: |- # !required! This allows for multi-line strings in YAML, ↪ → this type preserves new-line characters comment=Sample Patch
Options for rounding
- 0 = Nearest
- 1 = Negative Infinity
- 2 = Positive Infinity
- 3 = Chop (Zero)
- The is the common default
Clamping Modes
The clamp modes are also numerically based.
- eeClampMode refers to the EE’s FPU co-processor and COP
- vuClampMode refers to the VU’s in micro mode
eeClampMode
- 0 = Disables clamping completely
- 1 = Clamp Normally (only clamp results)
- 2 = Clamp Extra+Preserve Sign (clamp results as well as operands)
- 3 = Full Clamping for FPU
vuClampMode
- 0 = Disables clamping completely
- 1 = Clamp Normally (only clamp results)
- 2 = Clamp Extra (clamp results as well as operands)
- 3 = Clamp Extra+Preserve Sign
GS Hardware Fixes
[ ] = GameDB values { } = GUI options ( ) = Default values
GS Hardware Mipmap Fixes
- mipmap [ 0 or 1 or 2 ] {Off, Basic, Full} Default: Automatic (No value, looks up GameDB)
- trilinearFiltering [ 0 or 1 or 2 ] {None, Trilinear, Trilinear Ultra} Default: None ( 0 )
GS Hardware General Fixes
- conservativeFramebuffer [ 0 or 1 ] {Off or On} Default: On ( 1 )
- texturePreloading [ 0 or 1 or 2 ] {None, Partial or Full Hash Cache} Default: None ( 0 )
- deinterlace [Value between 0 to 9 ] {Automatic, Off, WeaveTFF, WeaveBFF, BobTFF, BobBFF, BlendTFF, BlendBFF, AdaptiveTFF, AdaptiveBFF} Default: Automatic (No value, looks up GameDB)
GS Hardware Renderer Fixes
- autoFlush [ 0 or 1 ] {Off or On} Default: Off ( 0 )
- disableDepthSupport [ 0 or 1 ] {Off or On} Default: Off ( 0 )
- disablePartialInvalidation [ 0 or 1 ] {Off or On} Default: Off ( 0 )
- cpuFramebufferConversion [ 0 or 1 ] {Off or On} Default: Off ( 0 )
- preloadFrameData [ 0 or 1 ] {Off or On} Default: Off ( 0 )
- textureInsideRT [ 0 or 1 ] {Off or On} Default: Off ( 0 )
- halfBottomOverride [ 0 or 1 ] {Force-Disabled or Force-Enabled} Default: Automatic (No value, looks up GameDB)
- pointListPalette [ 0 or 1 ] {Off or On} Default: Off ( 0 )
GS Hardware Upscaling Fixes
- alignSprite [ 0 or 1 ] {Off or On} Default: Off ( 0 )
- mergeSprite [ 0 or 1 ] {Off or On} Default: Off ( 0 )
- wildArmsHack [ 0 or 1 ] {Off or On} Default: Off ( 0 )
- skipDrawStart [Value between 0 to 100000 ] {0-100000} Default: Off ( 0 )
- skipDrawEnd [Value between 0 to 100000 ] {0-100000} Default: Off ( 0 )
- halfPixelOffset [ 0 or 1 or 2 or 3 ] {Off, Normal Vertex, Special Texture or Special Texture Aggressive} Default: Off ( 0 )
- roundSprite [ 0 or 1 or 2 ] {Off, Half or Full} Default: Off ( 0 )
Game Fixes
These values are case-sensitive so take care. If you incorrectly specify a GameFix, you will get a validation error on startup. Any invalid game-fixes will be dropped from the game’s list of fixes.
- Preload TLB hack to avoid tlb miss on Goemon.
- IbitHack - VU I bit Hack avoid constant recompilation in some games (Scarface The World Is Yours, Crash Tag Team Racing).
- VUSyncHack - Make the VU’s run behind/in sync with the EE to fix some timing issues.
- VUOverflowHack - VU Overflow hack to check for possible float overflows (Superman Returns).
- SoftwareRendererFMVHack - Forces rendering into software mode during FMVs.
SpeedHacks
These values are in a key-value format, where the value is assumed to be an integer.
Options for SpeedHacks
- mvuFlagSpeedHack
- Accepted Values - 0 / 1
- Katamari Damacy have weird speed bug when this speed hack is enabled (and it is by default)
- MTVUSpeedHack
- Accepted Values - 0 / 1
- T-bit games dislike MTVU and some games are incompatible with MTVU.
- InstantVU1SpeedHack
- Accepted Values - 0 / 1
- Games such as Parappa the Rapper 2 need VU1 to sync, so you can force sync with this parameter.
Memory Card Filter Override
By default, the FolderMemoryCard filters save games based on the game’s serial, which means that only saves whose folder names containthe game’s serial are loaded.
This works fine for the vast majority of games, but fails in some cases, for which this override is for. Examples include multi-disc games, where later games often reuse the serial of the previous disc(s),
and games that allow transfer of savedata between different games, such as importing data from a prequel. Values should be specified as a list of strings, example shown above.
Patches
The patch that corresponds to the running game’s CRC will take precedence over the default. Multiple patches using the same CRC cannot be defined and this will throw a validation error. CRCs are case-insensitive, however uppercase is preferred stylistically!
Patches should be defined as multi-line string blocks, where each line would correspond with a line in a conventional *.pnach file For more information on how to write a patch, see the following forum post
Editor Tooling
We provide a JSON Schema for the GameDB’s format. You can use this to validate the file, and assist in writing it properly.
VSCode Integration
If you use VSCode and you want it to properly lint the GameIndex.yaml file you should:
- Download the YAML extension - https://marketplace.visualstudio.com/items?itemName=redhat.vscode- yaml
- Add the following to your settings: "yaml.schemas": { "https://raw.githubusercontent.com/PCSX2/pcsx2/master/pcsx2/Docs/gamedb- schema.json": "**/GameIndex.yaml",
↪ → ↪ → } ,
