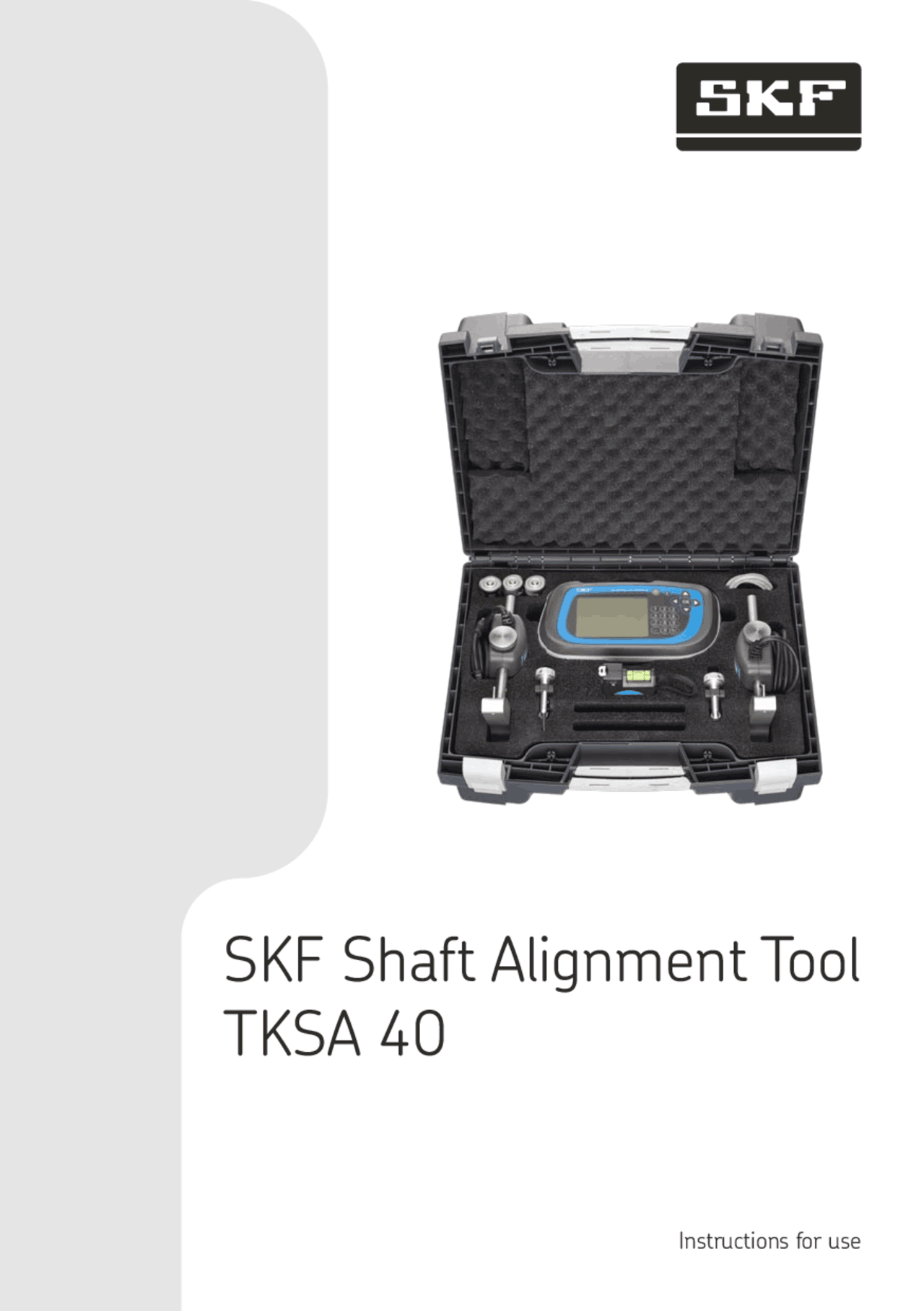

Instructions for use

SKF Shaft Alignment Tool

TKSA 40

EC Declaration of conformity

We, SKF Maintenance Products, Kelvinbaan 16, 3439 MT Nieuwegein, declare that

SKF Shaft Alignment Tool TKSA 40

has been designed and manufactured in accordance with: EMC DIRECTIVE 2004/108/EC as outlined in the harmonized norm for Emission: EN 61000-6-3: Immunity: EN 61000-6-2:2005, EN 61000-4-2, -

Directive RoHS, 2002/95/EC

The laser is classified in accordance with the EN 60825-1:2007. The laser complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

The Netherlands, March 2010

Sébastien David Manager Product Development and Quality

Safety recommendations

• Always turn off the power of the drive machine before you start working.
• Do not expose the equipment to rough handling or heavy impacts.
  • Always read and follow the operating instructions.
  • The tool uses two laser diodes with an output power below 1 mW. Still, never stare directly into the laser transmitter.
  • Calibrate the equipment regularly.
  • Never aim the laser line into someone’s eyes.
  • Opening the housing of the measuring unit may result in hazardous light exposure and voids warranty.
• The equipment should not be used in areas where there is a risk for explosion.
• Do not expose the equipment to high humidity or direct contact with water.
• All repair work should be taken care of by an SKF repair shop.

1.3 Measuring positions

To define the various measuring positions during the alignment procedure we use the analogy of a clock as viewed from behind the Movable machine. The position with the measuring units in an upright position is defined as 12 o’clock while 90° left or right is defined as 9 and 3 o’clock.

Fig. 4. The analogy of a clock

A B C

Measuring unit marked S on the stationary machine Measuring unit marked M on the movable machine Movable machine

2. Shaft alignment tool

2.1 Content of the case

The following components are included with the TKSA 40 tools:

• Display unit
• 2 measuring units with spirit levels
• 2 mechanical shaft fixtures
• 2 locking chains
• Tape measure
• Quick start guide
• Certificate of calibration
• CD ROM, including:
  • Instructions for use
  • Quick start guide
  • Instructional video
• USB cable
• Batteries
• Carrying case

Fig. 5. Content of the case

2.3 Technical data

Applications: Horizontal single coupling alignment, Soft foot check, Tolerance check, Storage of results

Denotation 1 mil = 1 thousandth of an inch Measuring units Housing material Type of laser Laser wave length Laser class Maximum laser power Type of detectors Cable length Dimensions Weight

ABS plastic Diode laser 670 - 675 nm 2 1 mW Single-axis PSD, 8.5 x 0.9 mm (0.3 x 0.04 in) 1.6 m (5.2 ft) 87 x 79 x 39 mm (3.4 x 3.1 x 1.5 in) 210 gram (7.3 oz) Display unit

Housing material Display Screen protection Battery type Operating time PC connection Auto power off Displayed resolution Auto switch off Dimensions Weight

ABS plastic 10 cm (4 in) monochrome backlit screen Hard plastic 3 x 1.5V LR14 Alkaline or rechargeable 20 hours continuous USB after 1 hour if no keys are pressed 0.01 mm (1 mil in inch mode) 60 minutes 210 x 110 x 50 mm (8.3 x 4.3 x 2 in) 650 g (22.9 oz Complete system Distance between measuring units brackets

PC download Memory Softfoot check Alignment tolerance check User editable tolerances Shaft diameter range Chain: Optional chain: Accuracy of system Temperature range Operating humidity Carrying case dimensions Total weight (incl. case)

Maximum: 1000 mm (3.3 ft) Minimum: 70 mm (2.7 in) Plug in to PC by USB port 100 alignments Yes Yes Yes 30 - 500 mm 30 - 150 mm (1.2 - 5.9 in) 150 - 500 mm (5.9 - 20 in) < 2% / ± 0,01 mm 0 - 40 °C (32 - 104 °F) < 90 % 390 × 310 × 192 mm (15.4 × 12.2 × 7.6 in) 4,9 kg (10.8 lbs) Calibration / Warranty

Calibration certificate Warranty:

valid 2 years 12 month, please register your unit on www.mapro.skf.com/tksa/register

3. Instructions for use

3.1 Attach the measuring units

a) Use the fixtures to attach the measuring units to the shafts. Make sure that the unit marked M is attached to the Movable machine and the unit marked S to the Stationary machine (see section 1.2). For shaft with a diameter larger than 150 mm, an accessory extension chain (TMEA C2) is required.

Fig. 8. Attachment of mechanical fixture with chain

If it is not possible to attach the fixtures directly to the shafts (e.g. in case of space problems) the fixtures can be attached to the coupling.

b) Connect the measuring units to the display unit. Make sure that the marking on the cables corresponds to the marking of the ports in the display unit (see fig 6)

3.2 Switch on

Switch on the display unit by pressing the ON/OFF button (see fig. 6). You will now be prompted to enter the machine dimensions as per section 3.4.

3.3 Aim the laser lines

a) Put the two measuring units in the 12 o’clock position with the help of the spirit levels (fig. 4 & fig.7).

b) Aim the laser lines so that they hit in the centre of the target of the opposite measuring unit (fig. 9).

d) If the horizontal alignment is very poor the laser lines might travel outside the detector areas. If this happens a rough alignment must be done. Do this by aiming the laser lines at the positioning detectors in the 9 o’clock position. Turn the measuring units to the 3 o’clock position when the lines will hit outside the detector areas. Adjust the lines to the position half-way between the detector centre and the actual position by means of the adjustment mechanism as per fig. 11. Align the Movable machine until the lines hit the centre of the positioning detector.

B

B

B

B

Fig. 11. Rough alignment

A B C

The beam moves outside the detector area Adjust the beam to half the travel Direct the machine to hit the centre

A

B

C

A

B

C

3.4 Enter the dimensions

Fig. 12. Entering dimensions screen

Use the tape measure provided to measure the distances indicated on the screen. Navigate to the different distance fields with the left/right selection arrows. Enter the values using the alphanumeric keyboard. The measurement needs to be entered, in millimeter or inches depending on the measurement system used (see section 4, settings). Confirm with OK or with the right selection arrow. Erase the content of a box with the C key.

The rotational speed (RPM, rotation per minute) can be entered directly in the required field. Enter the RPM and press OK to confirm. Otherwise, press OK on the rotational speed field to display the built-in recommended maximum acceptable misalignment table. This table is used (as a reference) for the automatic tolerance check function of the TKSA

40. It is to be used as a guideline only. It shouldn’t replace the original equipment manufacturer recommendations. These recommendations can be entered in the editable fields at the bottom of the table.

C

MU marked “S” raw value

MU marked “M” raw value

Measurement module Soft foot mode Settings menu

Low battery sign

File manager

Measurement unit Rotational speed of the motor

Distance between the front and rear feet of the moveable machine

Distance between the MU marked “M” and the front feet of the moveable machine

Distance between the centre of the coupling and the MU marked “M”

Distance between the measuring units (MU)

Enter the desired values for each field with the alphanumeric keyboard. Confirm by pressing the right/left selection arrow or OK. Highlight the complete line to select it as the reference for the automatic tolerance check function. Press OK to confirm the choice and exit the table.

Next steps: From this module you can navigate to: Measurement module, to measure and determine the misalignment values (“A” distance given mandatory to access this module). See section 3. Soft foot mode, to check the presence of a soft foot on the moveable machine and correct it (only available when all distances are entered). See section 3. Settings menu, to adjust general settings. See section 4 File manager, to display and manage the saved files. See 5

3.5 Measure the alignment

Three measurements are required to evaluate the alignment status. To define the measurement positions, we use the analogy of the clock (see fig.4)

Rotate the shafts to move the measuring units to the 9 o’clock position. Check the positioning of the measuring units with the built in spirit levels (see fig. 7). Confirm the measurement by pressing OK. Leave the measuring units in position whilst the wait and warning symbol is displayed on the screen

Fig. 15 Wait and warning symbol

When registered by the display unit, the measured position is checked on the display.

Fig. 16 9 o’clock measurement position checked

Repeat the same sequence with the measuring units at the 3 o’clock and at 12 o’clock position.

Next steps: Once the last measurement (12 o’clock) is confirmed the result screen is displayed automatically (see section 3.6). Until the last measurement is confirmed, it is still possible to navigate to: Dimension module, to correct the dimensions entered in section 3.4. Settings menu, to adjust general settings (see section 4). File manager, to display and manage the saved files. See 5.

Dimension module

File manager

Settings menu

• To modify the dimensions given in the section 3.4 (B, C or motor speed), navigate to the Adding /Modifying dimension icon and press OK.

See below for the procedure to enter or modify a dimension.

• Result screen without a given motor rotational speed If the motor rotational speed is not given, the status of the alignment can not be compared by the unit with the maximum acceptable misalignment value.
• Result screen, with the B and C dimension and / or motor speed not given. If the B and C dimensions are not given in section 3.4, the feet adjustment values can not be calculated by the unit.

See below for the procedure to enter or modify a dimension.

Fig. 18 Results screen display without B, C dimension given

Enter or modify a dimension To get an indication of the alignment status compared with the maximum acceptable misalignment value, the motor rotational speed must be given. Navigate to the adding/modifying dimension icon and press OK. With the selection arrows, navigate to the required rotational speed field. Enter the rotational speed with the help of the alphanumeric keyboard, or press OK to display the recommended maximum acceptable misalignment table (see section 3.4). The display is automatically updated with the status of the alignment compared with the maximum acceptable misalignment value.

Parallel/ offset

Vertical Horizontal

{

Main result screen Measurement module

Soft foot mode

Save results

File manager

Distance between the front and rear feet of the moveable machine

Rotational speed of the motor

Distance between the MU marked “M” and the front feet of the moveable machine

Coupling values

Angular

To get the feet adjustment values which are needed for the alignment, the B and C dimensions need to be given (see section 3.4). With the selection arrows, navigate to the required fields. Inform the values with the help of the alphanumerical keyboard, and press OK to confirm. To display the feet adjustment values, once all values entered, navigate to the main results icon and press OK.

Next steps: From the main results screen you can navigate to: Save results module, to save the results displayed of the screen. See section 3.

Adjustment module, to correct the alignment of the moveable machine. See section 3. Measurement module, to measure the alignment, See section 3.

Soft foot mode, to check the presence of a soft foot on the moveable machine and correct it (only available when all distances are entered). See section 3. File manager, to display and manage the saved files. See 5

3.7 Save the measurement results

The measurement results can be saved in the internal memory of the display unit. Up to 100 measurements can be saved.

Once the measurement results are displayed on the screen, navigate to the “save file” icon and press OK.
